W5500 Ethernet Breakout Board from Soldered EU OSH
Soldered is a recognized embedded hardware vendor providing production-ready modules and development boards for global maker and industrial markets.
0
Components
Hardware components
WIZnet - W5500
x 1
Project description

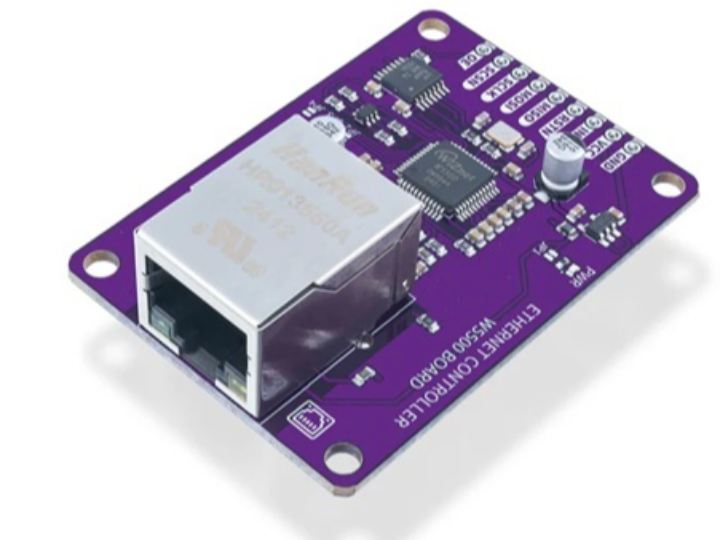

Step 1: Understanding the Hardware The Soldered Ethernet Controller Board integrates the WIZnet W5500, a hardwired TCP/IP Ethernet controller designed to offload networking tasks from microcontrollers. Key W5500 specifications: 8 independent hardware sockets 32KB internal buffer (TX/RX) SPI interface up to 80MHz Integrated 10/100 Mbps Ethernet PHY This breakout board includes: RJ45 connector with magnetics Power regulation and supporting passives SPI interface pins for easy MCU integration The W5500 processes: TCP/UDP/IP protocols packet retransmission socket state management This eliminates…
