x65

The 65c02 and 65c816-based modern computer with a retro feel.

irina

Published July 04, 2023

Original author: jsykOriginal source (new tab)

x65

Components

Hardware components

Project description

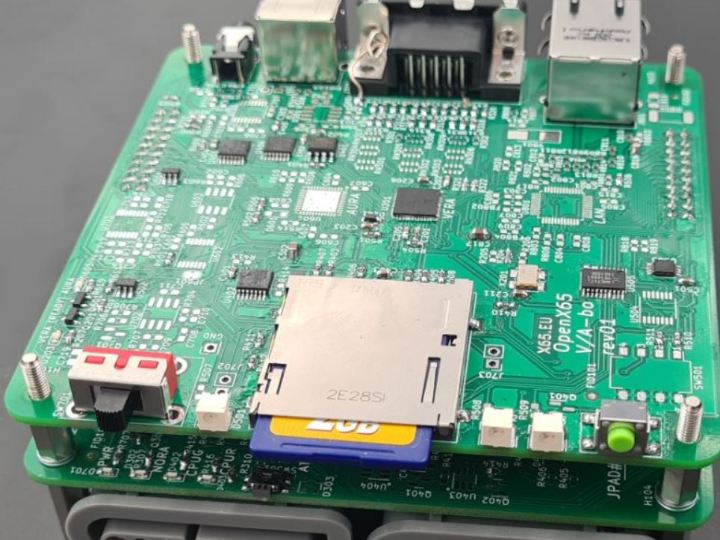

A two-PCB stacked construction: Motherboard (mo-bo) at the bottom and Video-Audio board (va-bo) at the top, connected by two 20-pin headers. Each board is exactly 100x100mm and just 2-layers. This construction has following advantages: the PCB stack can be placed inside Eurocard housings 100x100mm / 2-layers is cheaply manufactured by many PCB vendors in small quantities FPGA Lattice Lattice focuses on low-power and cost-effective FPGA solution W6100 VERA 16bit MCU
