RoarKit W5100 IO Ethernet Module

Components

Hardware components

Project description

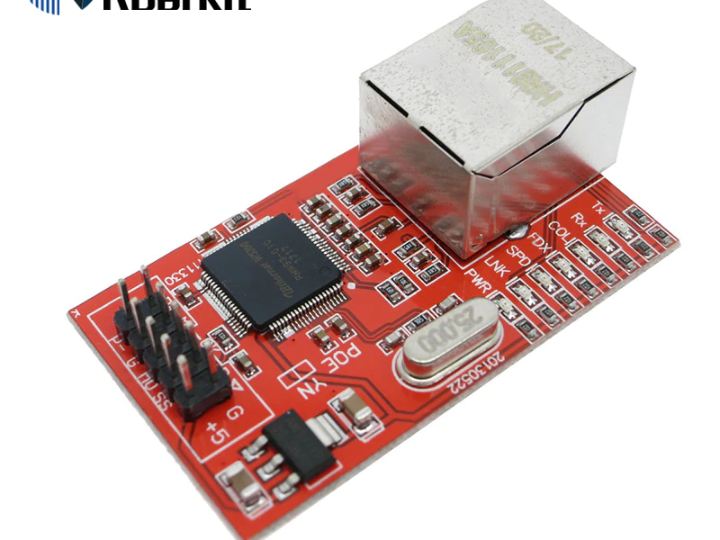

INTRODUCTION This product is the network module that includes W5100 (TCP/IP, MAC & PHY) & MAG-JACK. It can be used as a component and no effort is required to interface W5100 & MAG Jack. It can be used with Arduino products and then It can be used ARM mbed products too. FEATURES Key Features Plug-in Network Module Usable without H/W design for W5100, transformer & RJ-45 Fast evaluation for W5100 & MCU in the target board Support MCU BUS & high speed SPI interface Support 4 hardware sockets H/W design feature : refer the comparison table in the below HOW TO USE -
