Introducing the Chimaera DSP Unit

Components

Hardware components

Project description

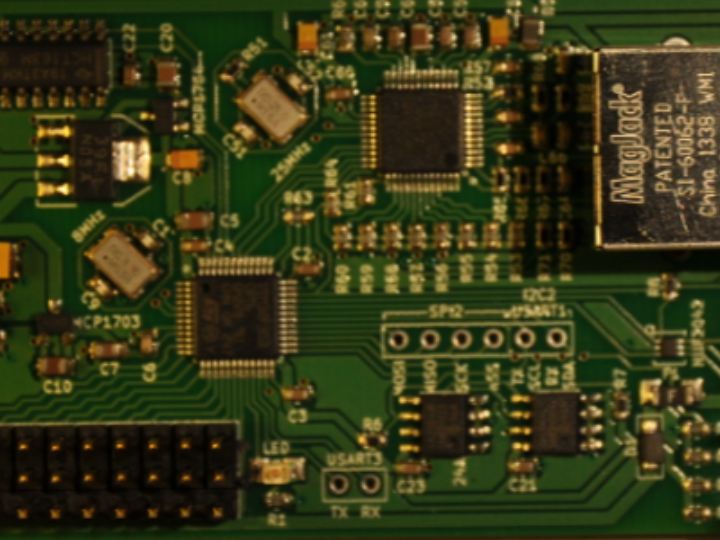

DETAILS This project is an example of WIZnet W5500 Platform. User can monitor sensors easily by using WIZnet W5500 Platform through Internet. This project would be included in IoT & VAR category of WIZnet Museum. Introducing the Chimaera DSP Unit A project log for Space Whistle – wind controller – musical IoT It is a mixed-signal board. It uses a 32bit ARM Cortex M4 microcontroller from STMicroelectronics (STM32F303Cx) clocked at 72MHz. Of the available peripherals, we use the FPU, ADC1, ADC2, ADC3, SPI1, I2C2, DMA1, DMA2, USB, several TIMERS and a couple of GPIOs. The main circuitry runs at…
