WizNet WizFi360-EVB

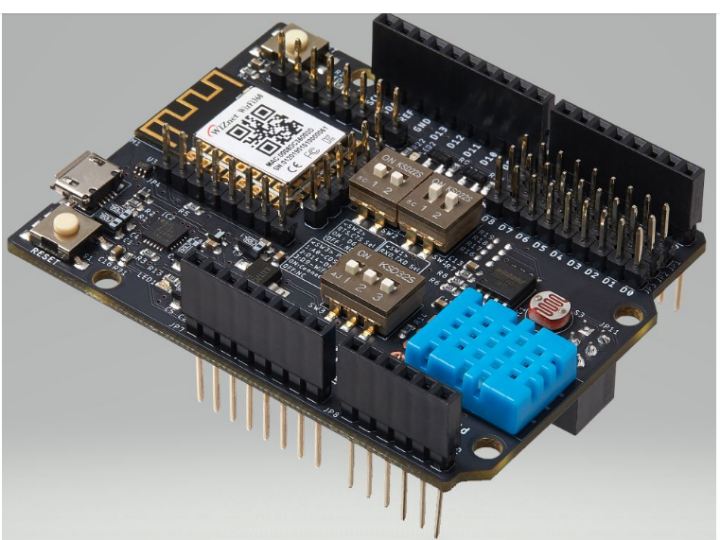

WizFi360-EVB is a development board for the WizFi360 module.
3
Components
Hardware components
WIZnet - WizFi360-EVB-Shield
x 1
Project description
Overview
The WizFi360 is a cost and low-power consumption industrial-grade WiFi module. It is compatible with IEEE802.11 b/g/n standard and supports SoftAP, Station and SoftAP+Station modes.
Documentation
Data sheet, technical reference, quick start guide: WIZwiki.
Usage
All IoT example projects require the following switch settings:
- SW1: all ON.
- SW2: all OFF.
- SW3: all OFF.
- SW4: OFF.
Connect these jumpers for serial communication:
- D0: JP3 and JP2
- D1: JP2 and JP1
