1 MCU, 2 WIZnet Chips: Dual SPI Networking on STM32

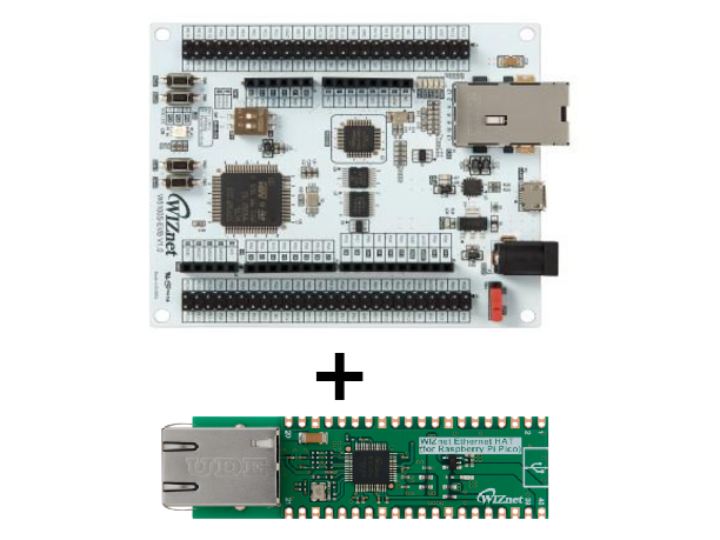

This project utilizes an W5100S-EVB(STM32 MCU Board) to manage 2 W5100S chips via separate SPI interfaces, enabling concurrent network operations from a single
0
Components
Hardware components
WIZnet - WIZnet Ethernet HAT
x 1
Project description
Controlling Two W5100S Ethernet HATs with STM32 MCU Objective: Utilize the STM32 MCU board (W5100S-EVB) to activate an additional SPI channel and connect two WIZnet Ethernet HATs (W5100S), creating a project that controls two W5100S chips with a single MCU. Implementation Approach: Use the Chip Select (CS) pin alternately to switch between the Ethernet HATs, enabling communication between the MCU and both W5100S chips. SPI Configuration: SPI1: Pins PA5, PA6, and PA7 (SCK, MISO, MOSI) from GPIOA. Connected to CHIP2 (WIZCHIP2). CS: GPIOD pin 2, Reset: GPIOC pin 7. SPI2: Pins PB13, PB14, and…
