TM32F407 + W5500: Ethernet-Connected DiSEqC Satellite Motor Controller

Custom PCB with STM32F407 and W5500 for remote MQTT control of satellite LNB polarization, DiSEqC motor positioning, and IF signal routing over Ethernet.

Benjamin

Published February 10, 2026 · © MIT license (MIT)

166 UCC

11 WCC

31 VAR

2 Following

Original author: Charles Price · United KingdomOriginal source (new tab)

TM32F407 + W5500: Ethernet-Connected DiSEqC Satellite Motor Controller

Components

Hardware components
W5500

WIZnet - W5500

x 1

STM32F411RE

STMicroelectronics - STM32F411RE

x 1

Software Apps and online services
KiCad

KiCad - KiCad

x 1

WIZnet parts

Project description

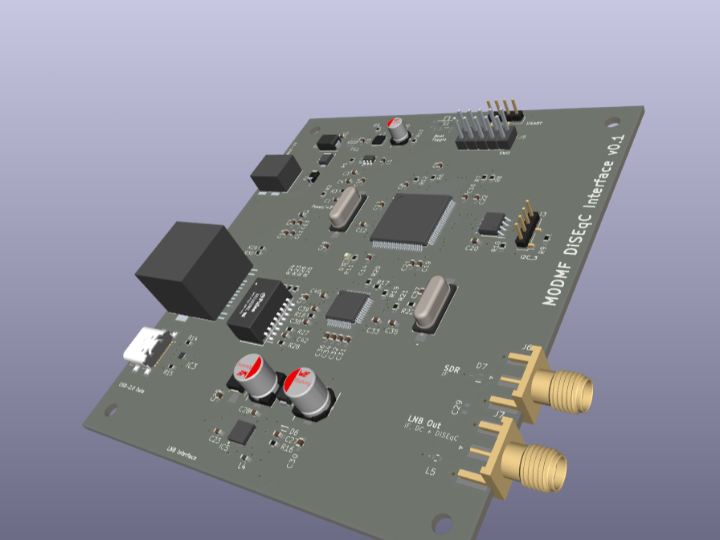

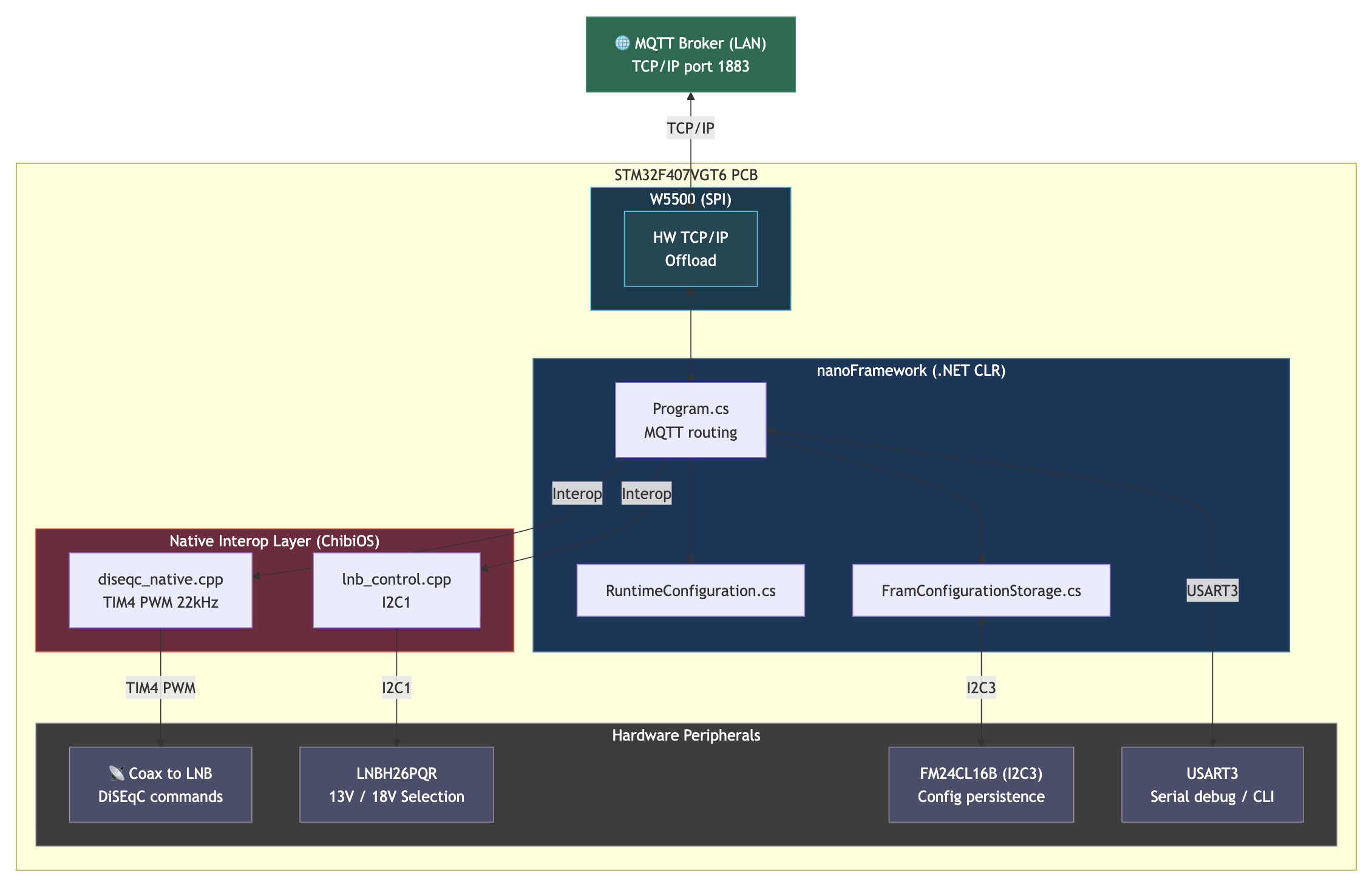

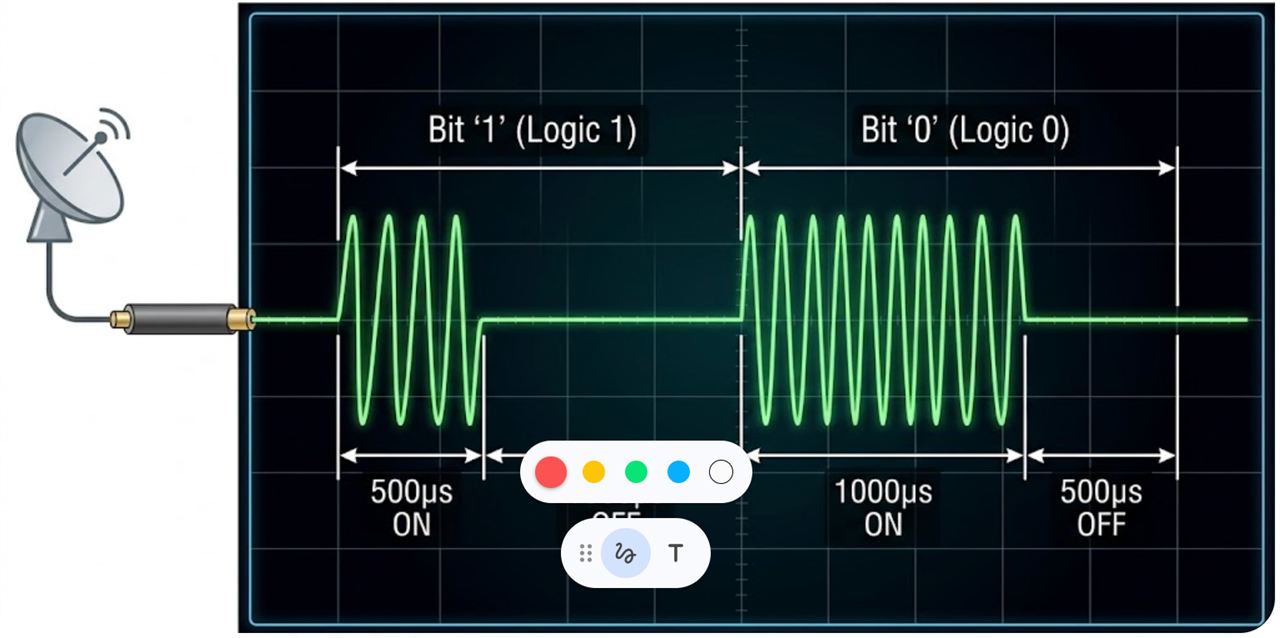

What This Project Does This is a purpose-built Ethernet-connected controller for satellite antenna systems. It replaces the manual process of switching LNB polarization, selecting frequency bands, and positioning DiSEqC motor-driven satellite dishes — all remotely controllable through MQTT over a standard Ethernet connection. The hardware is a custom 4-layer PCB designed from scratch in KiCad, centered around an STM32F407VGT6 microcontroller paired with a WIZnet W5500 for network connectivity. The software runs on .NET nanoFramework with a native C++ interop layer for time-critical DiSEqC…
