ARDUINO NETWORK MODULE COMPATIBLE UNO MINI W5100 ETHERNET

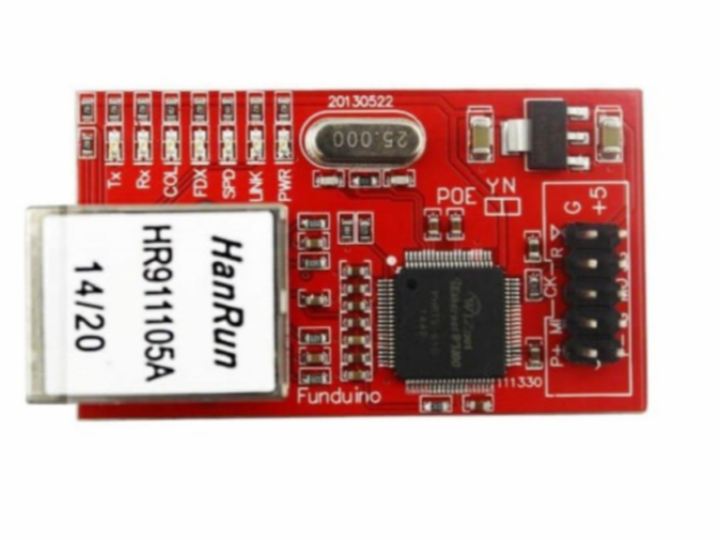

The W5100 MINI module is a single chip ethernet interface, with built-in 10/100 MBPS internal Ethernet control, mostly used in high integration, high stability and performance embedded system projects.



Description

The W5100 MINI module is a single-chip ethernet interface, with integrated internal Ethernet control 10/100 MBPS, mostly used in embedded system projects of high integration, high stability and performance.

Technical care

– Multiple interfaces: direct bus, indirect bus and SPI
bus – Hardware support TCP/IP protocol, supports TCP, UDP, ICMP and –
IGMP, IPv4, ARP, PPPoE.
– Up to four independent ports.
– Internal integration 16 Kbyte of cache for receiver buffer.
– Wide variety of LED status indicators: RX and TX, Full/duplex, Collision, Link,
speed
– Compatible with auto-polarity (DMI/MDIX)
– 3.3 V power, Digital inputs and outputs compatible with 5V
– Ethernet connector included, double row 2*14 2.0mm pin
– Size: 5.2x3x1.5 cm (length x width x height)

Contents

1x SHIELD BOARD MINI W5100
