RP2040-W5100S-MM5D91

Components

Hardware components
W5100S

WIZnet - W5100S

x 1

Project description

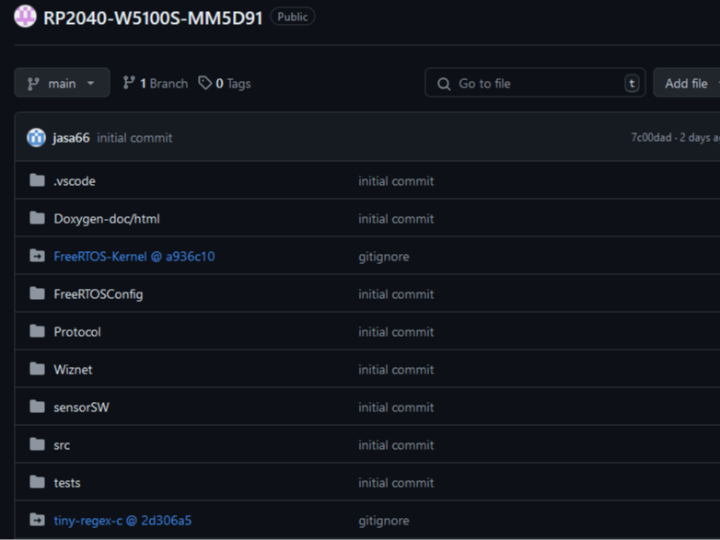

Sensor: Modbus TCP Slave/Server library for RP2040 + Wiznet 5100S based on the C++ SDK and FreeRTOS can be ported to W5100S-EVB-Pico, requires EEPROM and Accelerometer to be added in I2C-bus. sensorSW handling Sensor side UART. FreeRTOS in own folder as submodule tiny regex also as submodule sensorSW contains Sensor side UART. Protoocol contains Modbus side. main.cpp in own folder wiznet w5100s sdk in wiznet folder Environment Raspberry Pi 4/Ububntu 22.04 /Osx /Windows as development environment. Updating the SW through SWD enabling also the debugging. See installation instructions below…
