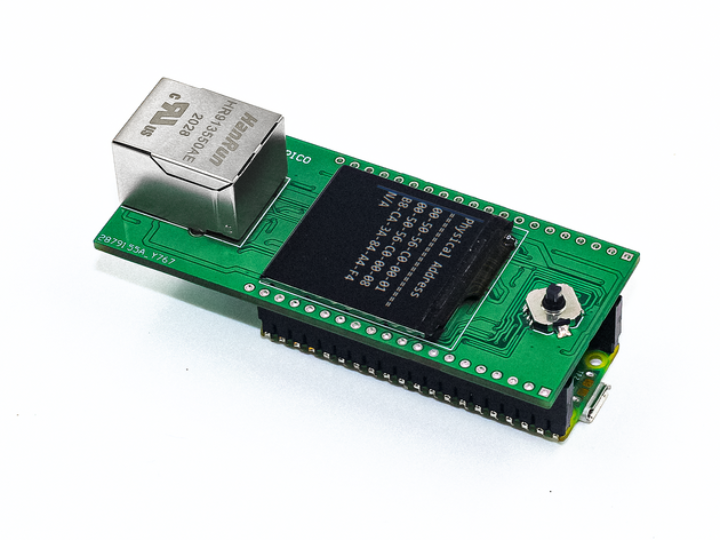

NetPi Features:

• Support Hardwired Internet protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
• Four independent SOCKETs for simultaneous connections
• Perform SOCKET-less commands: ARP-Request, PING-Request
• Ethernet power down mode and Wake on LAN over UDP for energy-saving
• 10Base-T/100Base-TX Ethernet PHY with auto-negotiation for full and half duplex with 10 and 100-based connections
• 3.3V operation with 5V I/O signal tolerance
• Network indicator LEDs for full/half duplex, link, 10/100 speed, and active status
• Female pin header for direct attachment to Raspberry Pi Pico and breakout key pins for use with other host boards
• Operating temperature range of 40°C to 85°C
• Operating current of 140mA
• 1.3" TFT LCD with 240 x 240 pixels RGB and a 5-way joystick for user experience
• Dimension: 74.54 x 21.00 (mm)
• Storage condition: -55°C to 125°C

The HAT also features a 1.3" TFT LCD with 240 x 240 pixels RGB and a 5-way joystick for a great user experience. NetPi is easy to install and use and compatible with the Raspberry Pi Pico header. Upgrade your Raspberry Pi Pico's connectivity today with NetPi, the ultimate Ethernet solution.
