How to Build Industrial Ethernet with W5500 on the ERQOS EQSP32CE ESP32-S3 PLC?

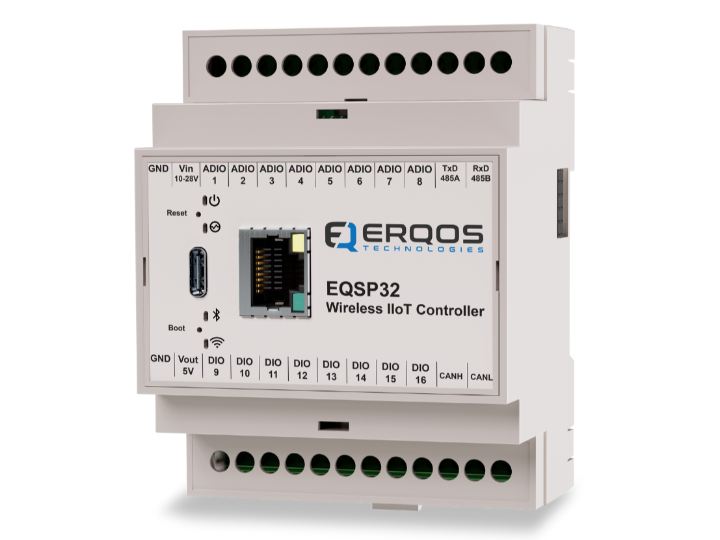

The ERQOS EQSP32CE is an ESP32-S3-based industrial controller that combines I/O, RS232/RS485, CAN, Wi-Fi, BLE, and wired Ethernet in a DIN-rail PLC format
0
Components
Hardware components
WIZnet - W5500
x 1
Project description
Summary Source: https://refcircuit.com/articles/915-teardown-erqos-eqsp32ce-plc-ethernet-version.html The ERQOS EQSP32CE is an ESP32-S3-based industrial controller that combines protected field I/O, RS232/RS485, CAN, Wi-Fi, BLE, and wired Ethernet in a DIN-rail PLC format. A hardware teardown identifies the Ethernet device as the WIZnet W5500, which provides the controller's SPI-connected 10/100 Ethernet path to the RJ45 interface. ERQOS software then presents Ethernet as a managed system service with DHCP or static addressing, link-state monitoring, MQTT connectivity, and automatic Wi-Fi…
