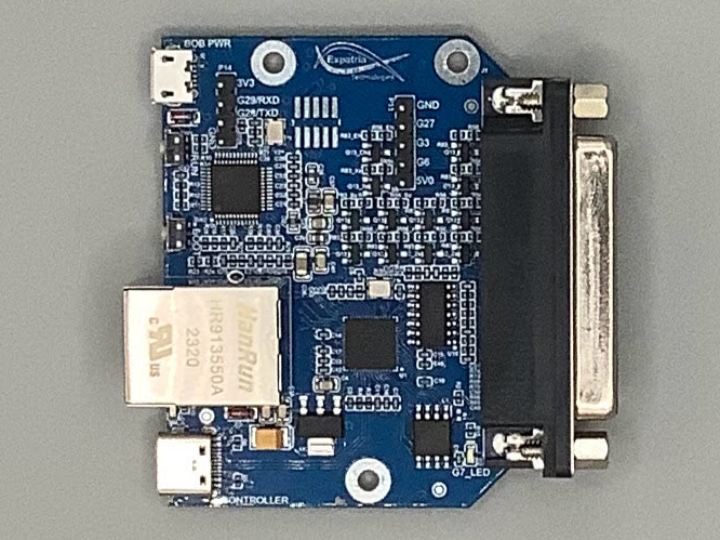

PicoBOB-DLX CNC control module
Please note that while the PicoBOB-DLX hardware is tested and fully functional, the software (especially LinuxCNC/Remora) is still under active development.
0
Project description
Standard 5V Parallel port interface for many CNC machines and peripherals. When combined with Mach3 Breakout Board, has the following features: 5 axes of step/direction control 10A Spindle Relay 0-10V Analog spindle speed control 5 opto-coupled inputs One 24V output The PicoBOB DLX can also be used with the Gecko G540 multi-axis step drive and supports all of the I/O on that device. Host communication is via Ethernet or USBC connectors. When combined with the Remora RP2040-W5500 component, the PicoBOB DLX can be used as an ethernet attached step generator with LinuxCNC. For details, the…
