[Re-curation] Prepare X-Nucleo – STEP200

Project description

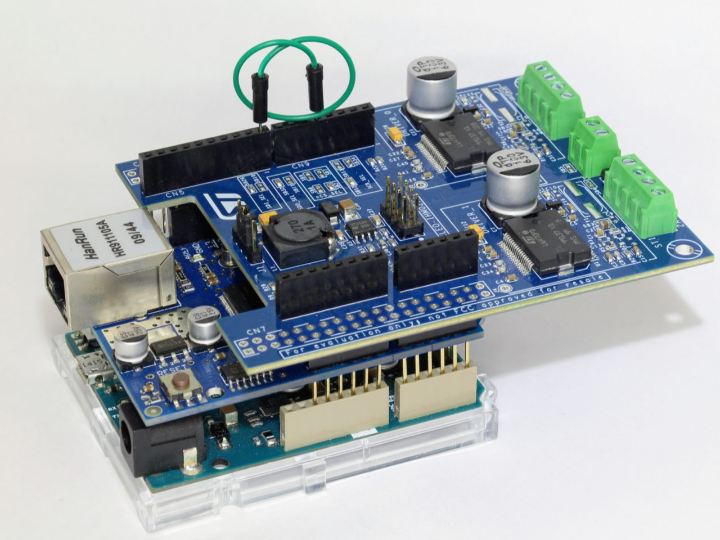

Arduino and Ethernet shield are communicate via the 6 pins SPI connector, but it doesn't exist on X-Nucleos. Also, the D4 leg of X-Nuleco was cutted when preparing it and that pin is required for the Ethernet shield. Therefore, the stacking order should always be as follows; the Ethernet Shield on the Arduino X-Nucleo on top of them The photo shows STEP200. The Ethernet Shield is on top of the Arduino M0, and the X-NUCLEO-IHM02A1 is on top of them. Connections Power supply Connect the power supply to the X-Nucleo. A positive and negative terminals are indicated as follows. NOTE: Do not turn…
