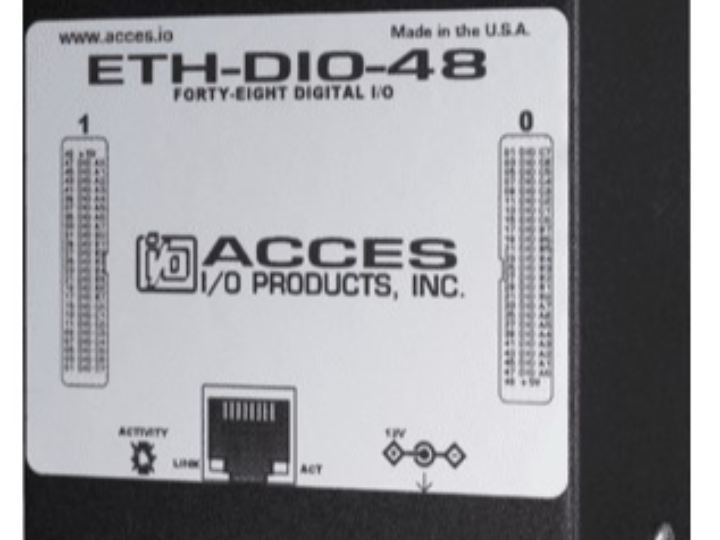

ACCES - ETH-DIO-48 Ethernet Digital I/O Module

The ETH-DIO-48 was designed for compact control and monitoring applications. The product features 48 or 24 industrial strength, high-current TTL digital I/O lines. Connections to the board are made via two industry standard, 50-pin IDC-type headers. Each header has three 8-bit I/O ports designated A, B and C. Each port can be programmed to accept inputs or drive outputs. For external circuits, 0.5A fused +5VDC power is available at pin 49 of each I/O connector. Power is supplied to the card via an included AC/DC regulated 5VDC external power adapter.

This Ethernet device is an ideal solution for adding portable, easy-to-install, digital I/O to any Ethernet network, even wirelessly. The ETH-DIO-48 is excellent for use in applications sensing inputs such as switch closures, TTL, LVTTL, CMOS logic, and is ideal for controlling external relays, driving indicator lights, and more. Applications include home, portable, tablet, laboratory, industrial automation, and embedded OEM.

Each I/O line is buffered by a type 74ABT543A tristate buffer transceiver capable of sourcing 32mA or sinking 64mA. Jumper selected resistors permit user configuration of I/O lines for pull-up (to +5 VDC), pull-down (to ground), or floating depending on the application requirement. Pull-ups are useful for contact monitoring and assure that there are no erroneous outputs at power-up until the board is initialized by system software.
