CS741

The Cleverscope CS741 is a robust Ethernet interface that delivers high-speed connectivity for your network, operating at a powerful 100 Mbit/sec. This translates to approximately 6 Mbyte/sec of sustained throughput. Under regular use, the CS741 performs seamlessly, showing no discernible difference in performance when compared to the CS740. This consistency in performance guarantees a reliable, high-level functionality irrespective of the model you choose​​.

One of the key features of the CS741 is its transformer isolation, which reaches a peak of 1500 V. This feature ensures that there is no galvanic connection to the PC, protecting your device from potential electrical interference. Moreover, the Ethernet capabilities of the CS741 allow you to operate your Cleverscope on a network located anywhere in the world. Whether you're operating from across the room or across the globe, the CS741 is designed to provide seamless connectivity​​.

The CS741 comes as a boxed unit that easily plugs into the place of the USB Module. It features a 10/100 Mbit/sec auto switch and automatic TX/RX selection (MDI), eliminating the need for a crossover cable. Each CS741 unit comes with a replacement rear panel, which is customized based on your serial number provided during the order process. This guarantees that you receive a back panel that is precisely suited to your specific device​​.

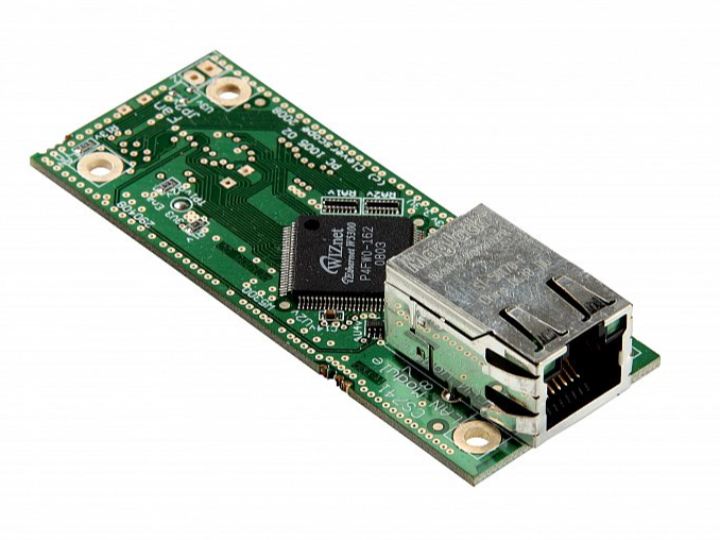

The heart of the CS741 is the WIZnet's W5300 chip. This hardwired TCP/IP embedded Ethernet controller brings stable internet connectivity to embedded systems requiring high network performance. The W5300 supports a maximum network throughput of 80Mbps at the application layer, which can handle high-demand tasks. It's also user-friendly, offering simple control akin to memory, and ensuring stable data communication​.

The W5300 chip supports hardwired TCP/IP protocols such as TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE. It has a built-in hardware network engine designed to prevent various network attacks such as flooding, spoofing, and injection. The chip hosts an 8/16 bit Data Bus in both Direct & Indirect Address Modes, providing flexibility in interfacing with other hardware. The chip also supports an embedded OS driver for Linux (kernel 2.6.24) and has 8 independent hardware sockets. With an internal 128Kbytes memory dedicated to TCP/IP packet processing, it ensures efficient and smooth data communication​​.

The W5300 also includes a 10BaseT / 100Base TX Ethernet PHY, supporting Auto-Negotiation for both Full & Half Duplex, 10 & 100 Based, and Auto-MDIX. It operates at 3.3V with 5V I/O signal tolerance and offers LED outputs for TX, RX, full/half duplex, and Collision link speed. All these features are packed into a compact 100LQFP lead-free package (14x14mm)​​.

In conclusion, the Cleverscope CS741, powered by the WIZnet W5300 chip, is a versatile and powerful Ethernet interface that ensures fast, stable, and secure network performance. It's a perfect choice for those seeking dependable and high-performing Ethernet connectivity.
