WIZnet WIZ550io/W5500 Ethernet module (with Espruino Pico 'Shims')

WIZnet WIZ550io/W5500 Ethernet module (with Espruino Pico 'Shims')

scott

Published April 02, 2019

146 UCC

20 WCC

38 VAR

1 Followers

Original source (new tab)

Components

Hardware components
WIZ550io

WIZnet - WIZ550io

x 1

Espruino Pico

espruino - Espruino Pico

x 1

Shims

x 1

Project description

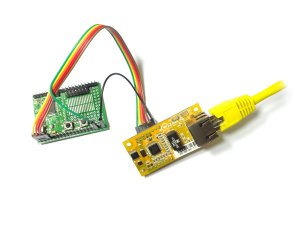

'Shims' for the Espruino Pico are small adaptor boards that you can solder to the Espruino Pico to make it easier to attach devices. For example: WIZnet WIZ550io Module In order to use WIZ550io in Espruino, you had to connect with wire. Like the picture below : However, if you use Shims, you can connect WIZ550io directly to Espruino. The Shim available for the Espruino Pico helps to adapt the W550io to fit onto the Pico. Please see the video below: [embed]https://youtu.be/YZzKH_41WUU[/embed]
