An Simple IoT example – connected CO2 Sensor with WIZ550S2E

This IoT example shows how to connect CO2 sensor to your ethernet network, and how to send sensing data by using Serial-to-Ethernet gateway module

TheoIm

Published December 04, 2023

116 UCC

30 WCC

8 VAR

Original author: embeddist · South KoreaOriginal source (new tab)

An Simple IoT example – connected CO2 Sensor with WIZ550S2E

Components

Hardware components
WIZ550io

WIZnet - WIZ550io

x 1

Gravity: UART Infrared CO2 Sensor (0-50000ppm)

DFRobot - Gravity: UART Infrared CO2 Sensor (0-50000ppm)

x 1

Project description

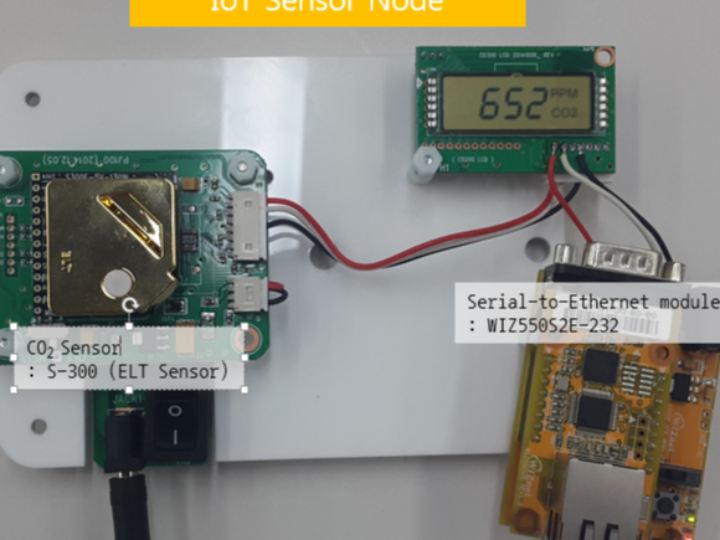

This IoT example shows how to connect CO2 sensor to your ethernet network, and how to send sensing data by using Serial-to-Ethernet gateway module as UDP client. Using S-to-E gatewat module, your device does not need any additional codes and hardware requried. In this example, WIZ550S2E-232 as a S-to-E module and S-300 as a CO2 sonsor module are used. WIZ550S2E-232: This module is a gateway module that converts RS-232 protocol into TCP/IP protocol and enables remote gauging, remote management of the device through the network based on the Ethernet and the TCP/IP by connecting to existing…
