🚀 Micropython with WIZnet W5500 EVB: Reliable Ethernet Communication for Raspberry Pi Pico

Using MicroPython and WIZnet W5500 EVB-Pico, this project enables stable Ethernet communication for Raspberry Pi Pico, including DHCP, ping, and TCP socket test

matthew

Published April 17, 2025

Original author: Stephanj Hennion · United States of AmericaOriginal source (new tab)

🚀 Micropython with WIZnet W5500 EVB: Reliable Ethernet Communication for Raspberry Pi Pico

Components

Hardware components Software Apps and online services

Project description

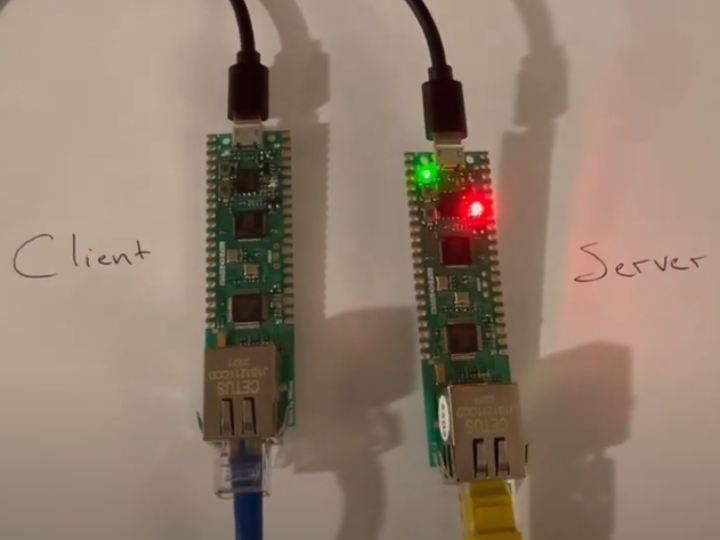

Looking to connect your Raspberry Pi Pico projects over Ethernet? This tutorial dives into using Micropython with the WIZnet W5500 EVB-Pico, a microcontroller board featuring WIZnet’s W5500 Ethernet TOE chip (TCP/IP Offload Engine). From DHCP-based IP acquisition to bidirectional data transfer between multiple units, this step-by-step guide equips you to build robust wired communication for your IoT projects. 🛠 Hardware Overview Component Description MCU Raspberry Pi Pico Ethernet Module WIZnet W5500 EVB-Pico Communication Interface SPI (MOSI=19, MISO=16, SCK=18, CS=17, RESET=20) Power…
