W5300_STM32F429_FWUP Example

Components

Hardware components
W5300-TOE-Shield

WIZnet - W5300-TOE-Shield

x 1

Project description

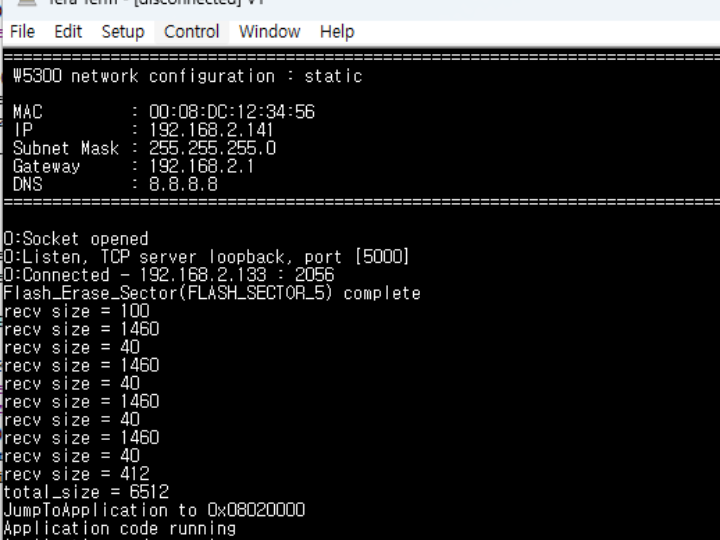

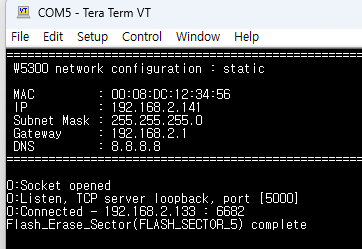

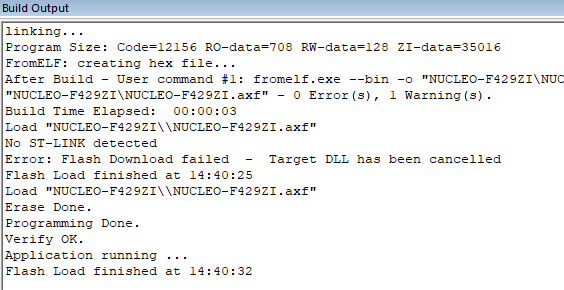

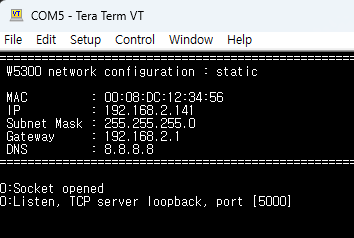

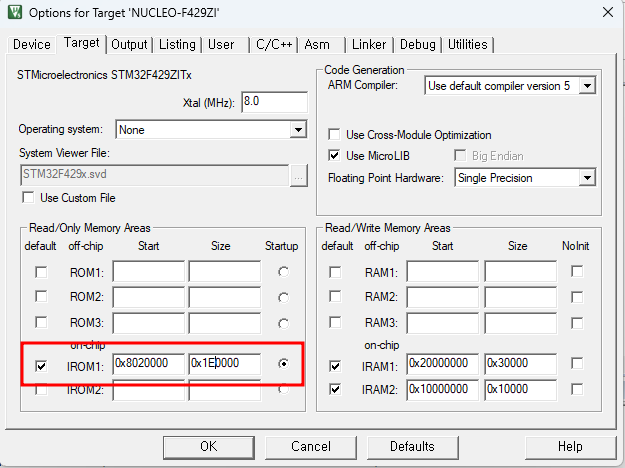

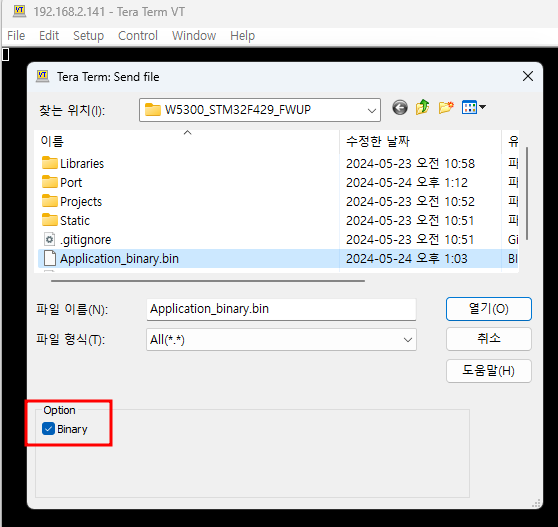

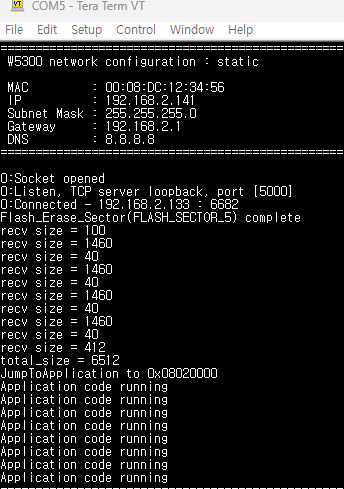

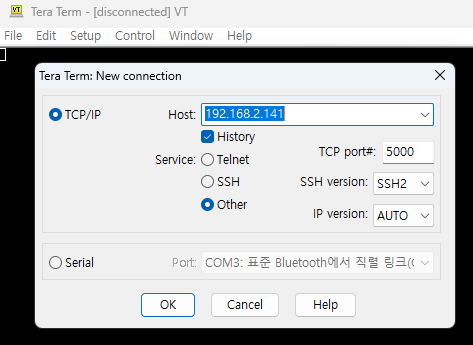

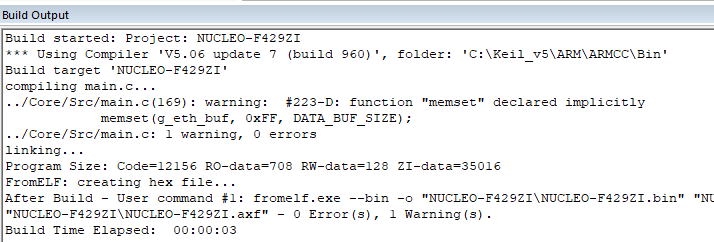

Hardware Requirements W5300 TOE Shield NUCLEO-F429ZI Desktop or Laptop USB Type-B Micro 5 Pin Cable Software Tools Complier : Keil MDK-ARM Serial / TCP Client : Teraterm Setup ST-LINK The ST-LINK pin was changed due to overlapping use of the FMC(Flexible Memory controller) data pin to control the W5300 built in the W5300 TOE Shield and the ST-LINK pin of the STM32 Nucleo-144 board. STLK_RX[STM32F103CBT6_PA3] : PD8 → PC10 STLK_TX[STM32F103CBT6_PA2] : PD9 → PC11 Therefore, in order to use the ST-LINK of the STM32 Nucleo-144 board, minor settings are required for the W5300 TOE Shield and STM32…
