W5300 TOE Shield Tutorial: Controlling an LED

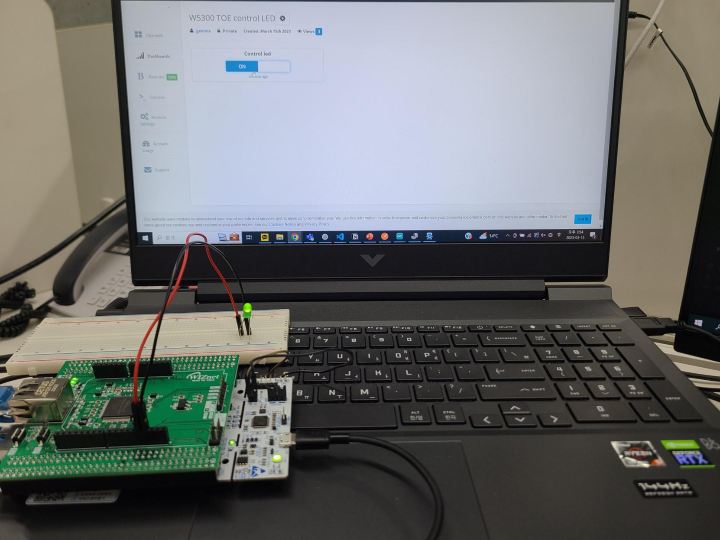

Controlling an LED via Cloud with W5300 TOE Shield and Arduino IDE.

WIZnet

Published March 16, 2023 · © MIT license (MIT)

Original author: Gemma Lee · South Korea

W5300 TOE Shield Tutorial: Controlling an LED

Components

Hardware components
W5300-TOE-Shield

WIZnet - W5300-TOE-Shield

x 1

MULTICOMP PRO - Generic LED

x 1

Software Apps and online services
Arduino IDE

Arduino - Arduino IDE

x 1

Project description

0. Introduction This article is a guide on how to use the W5300 TOE Shield with the Arduino IDE, specifically with the STM32 Nucleo-F429ZI board. In this article, we will provide a step-by-step tutorial on how to configure the Arduino IDE, connect the hardware and test the Ethernet functionality. Furthermore, we will show you how to connect the W5300 TOE Shield to the Beebotte cloud platform, which allows you to send and receive data from anywhere in the world. The W5300 T0E shield is a hardware module used with Arduino-compatible boards to provide network connectivity. This specialized chip…
