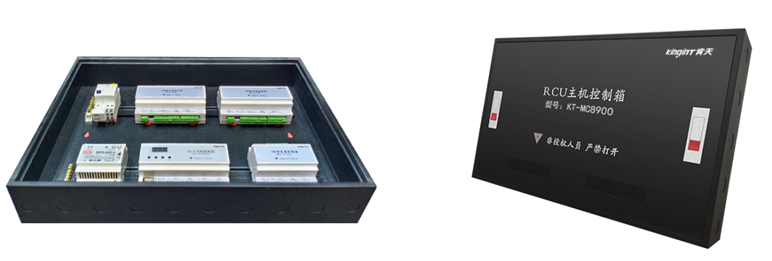

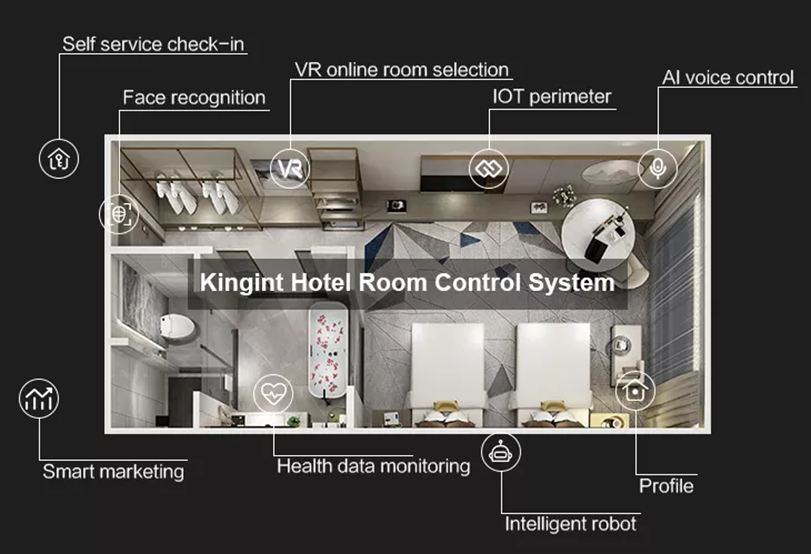

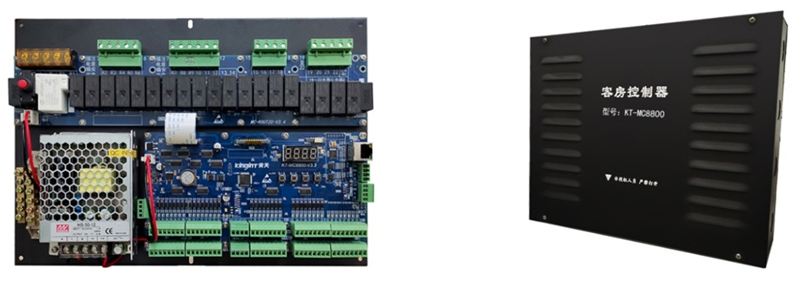

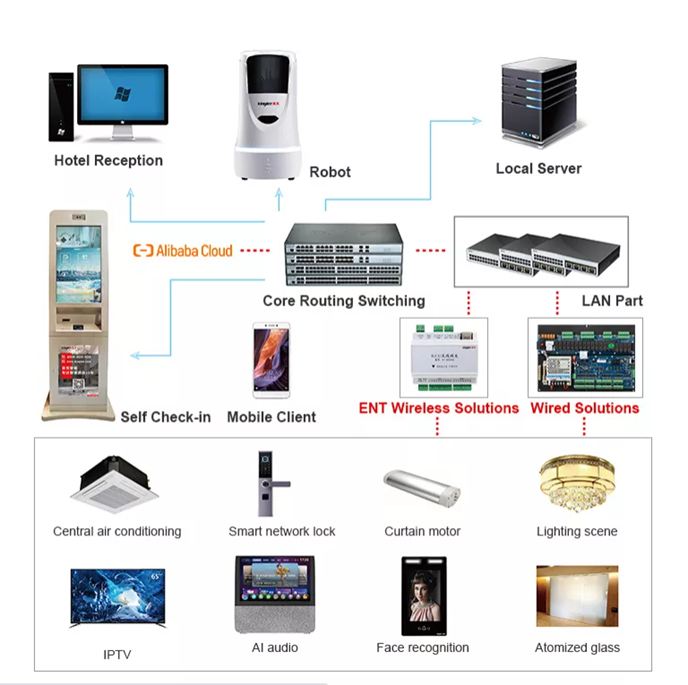

Intelligent Hotel Room Guest Control System

Standard 32-way switch input, including doorbell, door sensor, infrared, service signal, lighting control, scene control, etc.,can be expanded to 40-way.

Standard 20-way relay output, including 1-way 30A relay controlled socket output, 19-way 16A relay light control and
air-conditioning control output, which can be expanded to 36-way

Standard 32-channel backlight control output, each backlight can be controlled independently, and can be expanded to 40 channels

Standard 2-way RS485 interface

Standard 1-way TCP/IP network interface, support remote management and control

Support 4-channel PWM dimming module expansion

Support wireless curtain control module, switch panel expansion

Support infrared control module expansion

Support 8-channel 0-10V dimming module expansion

Support UPS emergency power switching module expansion

Support RS485 bus cascade expansion

Standard 18-way switch input, including doorbell, door sensor, infrared, service signal, lighting control, scene control, etc.,can be expanded through RS485 bus

Standard 2-way RS485 interface, expandable to 3-way

Standard 18-channel backlight control output, each backlight can be controlled independently, and can be expanded through RS485 bus

Standard 1-way TCP/IP network interface, support remote management and control

Support PWM dimming module expansion

Support infrared control module expansion

Support wireless curtain control module switch panel expansion

Support DC12V DC power output, maximum 1000mA current

Support 4-way/8-way and 5-way/10-way relay expansion module expansion

Support 0-10V dimming module expansion

Support UPS emergency power switching module expansion

Support RS485 bus cascade expansion
