EtherCat

Project description

EtherCat

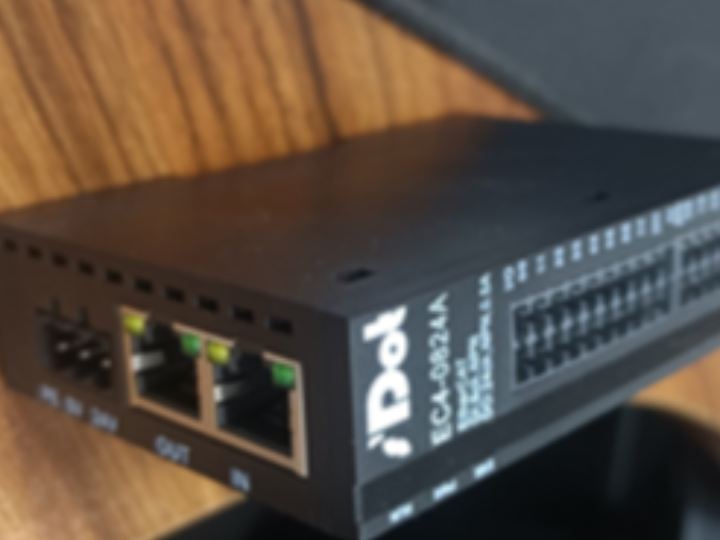

EC4-0824A

Integrated I/O, EtherCAT, 8ch DI, 24ch DO, NPN type, 102*72*25mm, space saving, smart, fast wiring, RTB(Removable Terminal Block), easy configuratI/On, suitable for main statI/Ons of Mitsubishi, Siemens, Omron and other major manufacturer, IP20.



Interface data

ProtocolEtherCAT
Max. nodes-
Data transfer mediumCAT5 Ethernet cable
Bus interface2*RJ45
Data transfer rates100Mb/s
Distance between stations100m
Electrical isolationYES

Technical data

Power supply24VDC(18~36V)
Current consumption50mA
Weight150g
Module size102*72*25mm
Protect. classIP20
Operating temperature-10~60℃
Storage temperature-20~75℃
Relative humidity95 %, no condensation
Power interfaceM12 5pin A coded

Digital input

Nominal voltage24VDC(±20%)
Number of inputs8
Transistor polarityNPN
Input current3mA
Electrical isolationAC 500V
IndicatorGreen LED

Digital output

Nominal voltage24VDC(±20%)
Number of outputs24
Transistor polarityNPN
Load typeohmic, inductive, lamp load
Max. output currentMax: 500mA
Port protectionOvervoltage, overcurrent
Electrical isolationAC 500V
IndicatorRed LED

Analog

Analog inputs0
Analog outputs0
