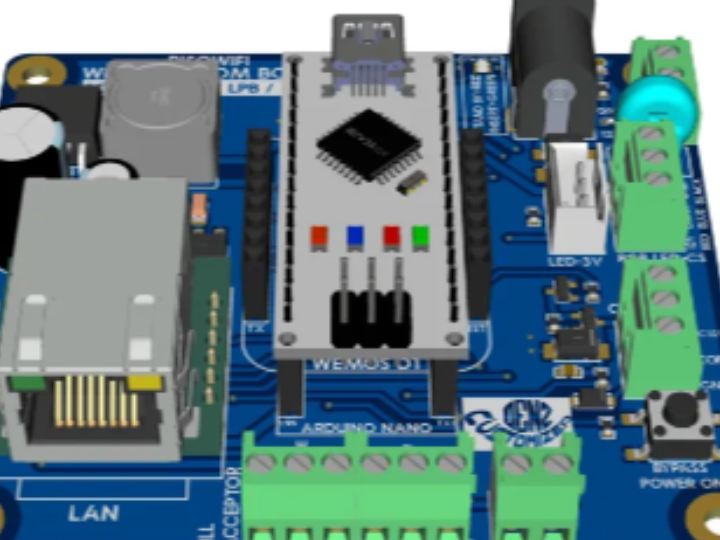

Wired custom board for Pisowifi

w5500 Wired custom board for Pisowifi

louis_m

Published September 25, 2023

Original author: LazadaOriginal source (new tab)

Wired custom board for Pisowifi

Components

Hardware components

Project description

Product details of Wired custom board for Pisowifi Wired Custom Board for Pisowifi FEATURES: Power surge protection. Reverse polarity input voltage protection. Power ON delay function is 139seconds. Power cut coinslot (it means saka lang magka power si coinslot upon insert coin mode). Bill acceptor pin function. LED RGB coinslot function. Note: 3wires LEDframe only has running & blinking light function while 2 wires LEDframe has only running light fumction. Reboot button function(optional). NOTE: Pin setting is indicated on the custom board. Please see top and bottom of board. Compatible on…
