STM32 based USB (+ Art-Net) to DMX512 Interfaces
An Art-Net·USB → DMX512 lighting interface on STM32 + WIZ850io (W5500), using the W5500 hardware UDP socket directly and supporting MIDI, ASCII, and MiniDMX.
0
Components
Hardware componentsProject description

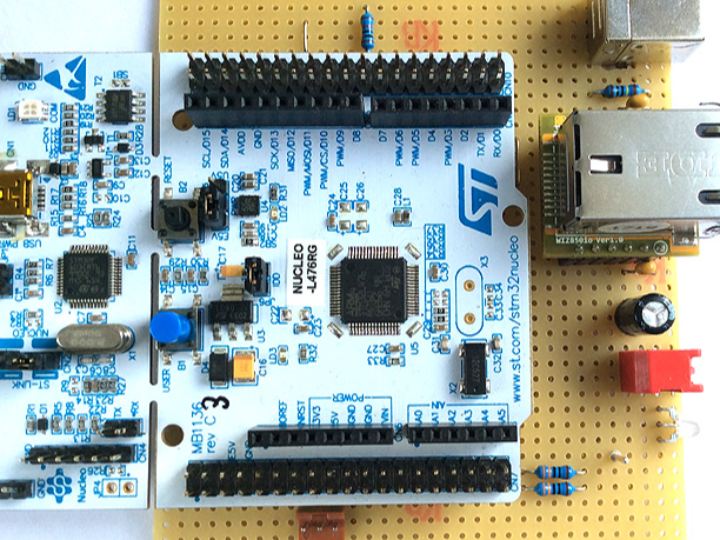

How a Bare-Metal STM32 USB+Art-Net-to-DMX512 Interface Uses the WIZnet W5500 (WIZ850io) Hardware UDP Socket for Reliable Lighting Control Overview Controlling stage lighting from a PC needs an interface that converts the PC's commands into the DMX512 signal that fixtures understand. This project is a USB + Art-Net → DMX512 interface built on an STM32 microcontroller — a DIY build offered in two hardware versions (STM32 Nucleo-L476, and the compact STM32F042). Its defining trait is a two-way input path. It receives the lighting-standard protocol Art-Net over Ethernet, and MIDI, ASCII, and…
