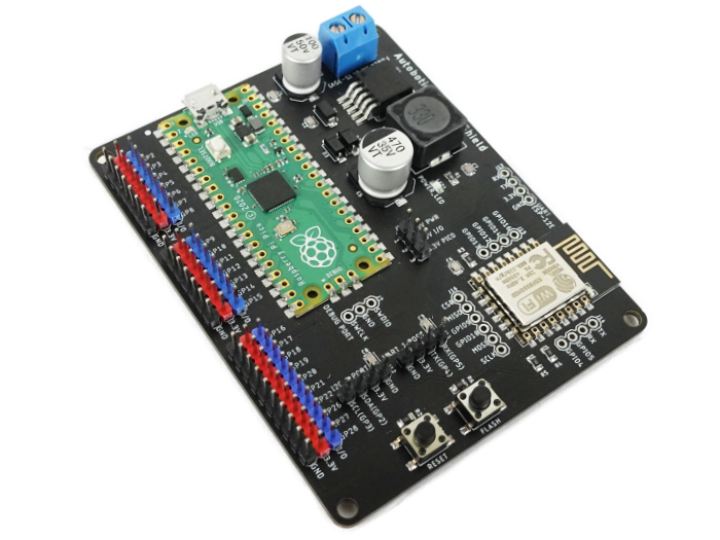

Autobotic IoT pico shield
pico board with built-in ESP-12E WiFi module.
0
Project description
Autobotic IoT Pico Shield is a Powerful & Simplified Development Board that has a built-in ESP-12E WiFi module and high power I/O ports. It allows users to integrate their IoT projects together for high power applications for example IoT Agriculture Monitoring System, WiFi Remoted Servo Robot, and IoT Smart Home etc. It is able to control the servo motor wirelessly.
Previous
Next
| Price | RM48.50 (≒ 14000) |
| Product SKU | AUT4815 |
| Brand | Autobotic |
| Points Needed | 1925 |
| Availability | In Stock |
Package | |
| Quantity | |
Highlight
- Warranty: 12 months (T&C Apply)
- Built-in ESP-12E WiFi module
- Wide Input Voltage Range: (5 - 35V)
- High-power I/O ports
- Multiple programming platforms
- Able to control servo motor with your pico wirelessly
Meet the Autobotic IoT Pico Shield
Control With Your Pico Wirelessly
Autobotic IoT Pico Shield is a Powerful & Simplified Development Board that has a built-in ESP-12E WiFi module and high power I/O ports. It allows users to integrate their IoT projects together for high power applications for example IoT Agriculture Monitoring System, WiFi Remoted Servo Robot, and IoT Smart Home etc. It is able to control the servo motor wirelessly.
Autobotic IoT Pico Shield comes with or without pre-soldered Raspberry Pi Pico to allow users to have multiple programming platforms likes MicroPython and Arduino IDE.
We help beginners with step-by-step tutorials with 5 Chapter, diagrams and codes to facilitate the learning process to get to know the fundamentals of programming and electronics. Autobotic IoT Pico Shield is definitely the best board to control your pico wirelessly for your projects in no time.
Raspberry Pi Pico |  |
| VS | |
Autobotic IoT Pico Shield |  |
FEATURES
- Built-in ESP-12E WiFi module
- High power I/O ports
- Wide input voltage range: (5 - 35V)
- Able to control servo motor wirelessly
- High power application IoT projects:
- IoT Agriculture Monitoring System
- WiFi Remoted Servo Robot
- IoT Smart Home
- Learn multiple programming platforms
- Board Dimension (L*W*T): 90 x 70 x 13 mm
- Compatible with
- Raspberry Pi Pico with Soldered Header
- I2C 16x2 Arduino LCD Display Module - White On Blue 5V (1602A)
- I2C OLED Display 128x64 For Arduino (Blue)
- Micro Servo SG90 Plastic Gear 9g/180 Degree
- Micro Servo TS90 Analog Plastic Gear 9g/180 Degree
- Soil Moisture Sensor Module
- Switching Power Supply 12V 10A 120W For LED CCTV 3D Printer
- Switching Power Supply 12V 20A 240W For LED CCTV 3D Printer
- Switching Power Supply 12V 30A 360W For LED CCTV 3D Printer
- AC To DC Power Adapter 5V 3A (UK Plug)
- 11.1V 3s 40c 5000mAH Rechargeable LiPo Battery
- LiPo Rechargeable Battery 11.1V 1300mAh
- 5x Single row male pin header included
- 1 for ESP-12E UART (4 pin)
- 1 for Debug Port (3 pin)
- 3 for ESP-12E GIPO (4 & 6 pin)
SPECIFICATION
- Power Input Voltage (VIN): 5 - 35V
- Digital Input Voltage
- Low level: -0.3 - 0.8V
- High level: 2.0 - 3.6V
- Digital Output Voltage
- Low level: 0 - 0.5V
- High level: 2.6 - 3.3V
- Analog Input Voltage: 0 - 3.3V
- Vservo (either USB or VIN is connected) : 3.3V
- Total +3V3 Output Current Via
- VIN (GPIO Ports): 3A
- USB (GPIO Ports): 300mA
- Operating Temperature: -20 - 85 ℃
- Wifi parameters
- Wi-Fi protocols: 802.11 b/g/n
- Frequency Range: 2.4GHz-2.5Ghz (2400M - 2.483.5M)
- Hardware Parameters
- Peripheral Bus: UART/HSPI/I2C/I2S/ir Remote Control GPIO/PWM
- Operating Voltage: 3 - 3.6V
- Operating Current: 80mA
BOARD LAYOUT
BOARD DIMENSION
DOCUMENTS
PACKAGE INCLUDES
- 1 x Autobotic IoT Pico Shield
- 5 x Single Row Male pin Header
- 4 x M3 Nylon Self-Interlock Standoff (6mm)
