Ethernet shield w5100 power control on web page
Ethernet shield w5100 power control on web page
0
Components
Hardware componentsArduino
x 1
UNO R3
Ethernet Shield
x 1
W5100
Датчик температуры и влажности
x 1
DHT-11
Датчик дыма и газов
x 1
MQ-2
Модуль реле
x 1
4 канала
Провода Dupont Папа-Мама
x 1
Провода Dupont Папа-Мама
Project description
Gradually, our page from a simple Arduino?weather station?turns into a full-fledged system for remote control of various devices as well as collecting and displaying information from sensors via the?Arduino Web Control?web interface?.?Ethernet Shield W5100?and Arduino UNO?will help us in this?.?
This article is a logical continuation of the?previous material?where we installed the relay control buttons.?I think you have not encountered any difficulties with repetition, so I propose to continue.
Let's sort it out in pieces.?
The html slider call code looks like this:
Since the slider is not standard, let's apply styles to it.
The script that is responsible for the operation of the slider and sending the value based on its position will be as follows:
Load connect to 9 digital output.?The board even has a hint in the form of "~" which means that the output supports pulse-width modulation.
In the firmware, we specify 9 pin as a digital output.
These lines in the firmware are responsible for?controlling the power regulator?(in my case) the brightness of the LED.?Works thanks to PWM.

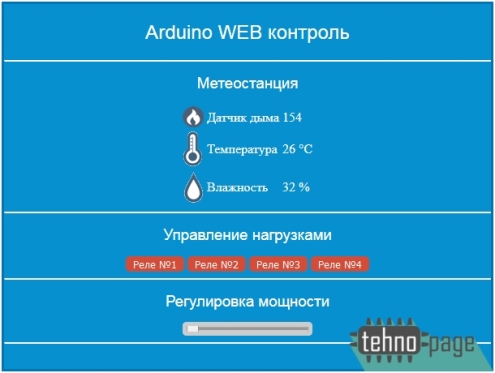

I also decided to change the page design a bit.?Now, this is not exactly a weather station as it was determined at the beginning.?
Added a style for the "<h2>" tag.?It will be used for the names of function lines.
And the whole block of information has become too small, so I added widths and heights for the "form" tag.
Taking into account all the changes indicated and not indicated, the file "index.htm" will be as follows:
The file "my.css" has now become:
Well, the firmware for Arduino will be like this:
Files "index.htm" and "my.css" are loaded into the root of the memory card.?Index.htm stored in utf-8!?Similarly, image files.?They are in the?archive?.?We unpack it also in the root of the card.
As a remotely controlled device, you can use a variety of lamps, fans, and more.?Only need to install a relay module.?In the case of a power regulator, you can use both field-effect transistors and triacs.?It all depends on the regulated voltage.?You can adjust the brightness of the glow for example lamp, chandeliers in the room, fan or LED strip.?Well, you know where you can apply it.?
All the names of the buttons and the rest you can easily change to your own.?Also with power control.?Change the names in the file "index.htm".
UPD.15.01.2016 Refactoring?
was made, which saved 6% of Arduino’s memory.
That's actually the modified code.?There are no additional functions here, only the code has become shorter.
If you have any questions, please write in the comments or on the?forum?.
Let's sort it out in pieces.?
The html slider call code looks like this:
<input type =?"range"?min?=?"0"?max?=?"255"?id =?"led_PWM"?step?=?"2.55"?oninput =?"PWM ()"?value =?"0"?class?=?"rangeP"?>
.rangeP?{??/ * line it goes to Firefox * /?
background?: none;?
border?: none;?
}?
.rangeP?{??/ * container * /?
padding?:?0?;?
border?:?5px?solid?#ccc?;?
border-radius?:?5px?;?
box-shadow?: inset?0?1px?#ccc?, inset?0?1px?1px?# 575555?, inset?0?-?2px?#ccc?;?
background?:?#fff?linear-gradient(?#BCBCBC?,?# fff0f5?);?
overflow?: hidden;?
}?
.rangeP?:: - moz-range-thumb?{??/ * slider in Firefox * /?
border-radius?:?2px?;?
cursor?: pointer?/ * put another cursor * /
function?PWM?()?{?
value?= document.getElementById (?"led_PWM"?).?value?;?
var?request =?new?XMLHttpRequest ();?
request.open (?"GET"?,?" setpin? pin = 5? value ="?+?value?,?false?);?
request.send (?null?);?
}
pinMode?(?9?,?OUTPUT?);
else?if?(StrContains (HTTP_req,?"setpin? pin = 5"?)) {?
String?input = HTTP_req;?
int?posStart = input.indexOf (?"value ="?);?
int?posEnd = input.indexOf (?''?, posStart);?
String?param = input.substring (posStart +?6?, posEnd +?1?);?
pin5 = param.toInt ();?
analogWrite?(?9?, pin5);?
sendBaseAnswer (client);?
}
h2?{?
font-family?: Arial;?
font-weight?: normal;?
margin?:?20px?;?
text-align?: center?
}
.form?{?
width?:?600px?;?
height?:?450px?;?
border?:?3px?solid?rgb?(?0?,?117?,?178?);?
background?:?rgb?(?6?,?144?,?207?);?
color?:?#fff?;?
}
<?html?>
<?head?>?
<?meta?http-equiv?=?'content-type'?content?=?'text / html;?charset = UTF-8 '?>?
<?link?rel?=?"shortcut icon"?href?=?"/favicon.ico"?type?=?"image / x-icon"?>?
<?title?>?Arduino WEB control?</?title?>?
<?link?type?=?"text / css "?rel?=?" StyleSheet "?href?=?"?/?my.css "?/>?
<
GetFlameState?()?{?
nocache =?"& nocache ="?+?Math?.random () *?1,000,000?;?var?request =?new?XMLHttpRequest ();?request.onreadystatechange =?function?(
)?{?if?(?this?.readyState ==?4?) {?if?(?this?.stus ==?200?) {?if?(?this?.responseText! =?null?) {?var?arrayOfStrings =?this?.responseText.split (?":"?);
document?.getElementById (?"flame_txt"?) .innerHTML = arrayOfStrings [?0?];?document.getElementById (?"temp_txt"?) .innerHTML = arrayOfStrings [?1?];?document?.getElementById (?"humid_txt"?) .innerHTML = arrayOfStrings [?2?];?for?(?var?i =?1?; i <?5?; i ++)?if(arrayOfStrings [?2?+ i] ==?"1"?)?document?.getElementById (?"led_"?+ i) .setAttribute (?"class",?"button_enabled"
else?document?.getElementById (?"led_"?+ i) .setAttribute (?"class"?,?"button_disabled"?);?}?}?}?}?request.open (?"GET"?,?"ajax_flame"?+ nocache,?true?);?request.send (?null?);?setTimeout (?'GetFlameState ()'?,?1000?);?}?function?onClick?(?pin?)?{?var?request =?new?XMLHttpRequest ();?request.open (?"GET"?,?"
+ pin,?false?);?
request.send (?null?);?
}?function?PWM?(
)?{?
value =?document?.getElementById (?"led_PWM"?) .value;?var?request =?new?XMLHttpRequest ();?request.open (?"GET"?,?" setpin? pin = 5? value ="?+ value,?false?);?request.send (?null?);?}?</?script?>
</?head?>
<?body?onload?=?"GetFlameState ()"?>?
<?div?class?=?"form"?>?
<?h2?>?Arduino WEB control?</?h2?>?
<?hr?noshade?size?=?"1px"?color?=?"white"?>?
<?h3?>?Weather Station?</?h3?>?
<?table?align?=?"center"?>?
<?tr?>?
<?td?>?<img?src?='flame.png'?/>?</?td?>?
<?td?valign?=?"center"?>?Smoke Detector?</?td?>?
<?td?>?<?span?id?=?"flame_txt"?>?0?</?span?>?</?td?>?
</?tr?>
<?tr?>?
<?td?>?<?img?src?=?'temp.png'?/>?</?td?>?
<?td?valign?=?"center"?>?Temperature?</?td?>?
<?td?>?<?span?id?=?"temp_txt"?>?0?</?span?>?° C?</?td?>?
</?tr?>
<?tr?>?
<?td?>?<?img?src?=?'humid.png'?/>?</?td?>?
<?td?valign?=?"center"?>?humidity?</?td?>?
<?td?>?<?span?id?=?"humid_txt"?>?0?</?span?>?%?</?td?>?
</?tr?>?
</?table?>?
<?center?>?
<hr?noshade?size=?"1px"?color?=?"white"?>?
<?h3?>?Load Management?</?h3?>?
<?button?type?=?"button"?id?=?"led_1"?class?=?"button_disabled"?onClick?=?"onClick (1)"?>?Relay # 1?</?button?>?
<?button?type?=?"button"?id?=?"led_2"?class?=?"button_disabled"?onClick?=?"onClick (2)"?>?Relay # 2?</button?>?
<?button?type?=?"button"?id?=?"led_3"?class?=?"button_disabled"?onClick?=?"onClick (3)"?>?Relay # 3?</?button?>?
<?button?type?=?"button"?id?=?"led_4"?class?=?" button_disabled "?the onClick?=?" the onClick (4) "?>?relay №4?</?button?>?<?br?>?
<hr?noshade?size?=?"1px"?color?=?"white"?>?
<?h3?>?Power adjustment?</?h3?>?<?input?type?=?"range"?min?=?"0"?max?=?"255"?id?=?"led_PWM"?step?=?"2.55"?oninput?=?"PWM ()"?value?=?"0"?class?=?"rangeP"?>?
<?hr?noshade?size?=?"1px"?color?=?"white">?
</?center?>?
</div?>?
</?body?>?
</?html?>
.form?{?
width?:?600px?;?
height?:?450px?;?
border?:?3px?solid?rgb?(?0?,?117?,?178?);?
background?:?rgb?(?6?,?144?,?207?);?
color?:?#fff?;?
}
td?{?color?:?#fff?}
h2?{?
font-family?: Arial;?
font-weight?: normal;?
margin?:?20px?;?
text-align?: center?
}?
h3?{?
font-family?: Arial;?
font-weight?: normal;?
margin?:?15px?;?
text-align?: center?
}
.button_disabled?{?color?:?#fff?;?/ * text color * /?
background?:?rgb?(?212?,?75?,?56?);?/ * button background * /?
border?: none;?/ * do not show border * /?
border-radius?:?5px?;?/ * rounding of corners * /?
cursor?: pointer?/ * set another cursor * /
? }
.button_disabled?: hover?{?background?:?rgb?(?232?,?95?,?76?);}?/ * when hovering the mouse * /?
.button_disabled?: active?{?background?:?rgb?(?152?,?15?,?0?);}?/ * when clicking * /
.button_enabled?{?color?:?# 000?;?/ * text color * /?
background?:?rgb?(?17?,?237?,?105?);?/ * button background * /?
border?: none;?/ * do not show border * /?
border-radius?:?5px?;?/ * rounding of corners * /?
cursor?: pointer?/ * set another cursor * /
? }
.button_enabled?: hover?{?background?:?rgb?(?94?,?242?,?153?);?}?/ * when hovering the mouse * /?
.button_enabled?: active?{?background?:?rgb?(?84?,?184?,?124?);?}?/ * when pressed * /
.rangeP?{??/ * line it goes to Firefox * /?
background?: none;?
border?: none;?
}?
.rangeP?{??/ * container * /?
padding?:?0?;?
border?:?5px?solid?#ccc?;?
border-radius?:?5px?;?
box-shadow?: inset?0?1px?#ccc?, inset?0?1px?1px?# 575555?, inset?0?-?2px?#ccc?;?
background?:?#fff?linear-gradient(?#BCBCBC?,?# fff0f5?);?
overflow?: hidden;?
}?
.rangeP?:: - moz-range-thumb?{??/ * slider in Firefox * /?
border-radius?:?2px?;?
cursor?: pointer?/ * put another cursor * /
}
dht11 DHT;?
File?webFile;?
char?HTTP_req [REQ_BUF_SZ] = {?0?};?// buffered HTTP request stored as null terminated string?
char?req_index =?0?;?// index into HTTP_req buffer?
byte?mac [] = {?0xDE?,?0xAD?,?0xBE?,?0xEF?,?0xFE?,?0xED?};?
IPAddress?ip (?192?,?168?,?0?,?20?);
EthernetServer?server (?80?);?
bool?pin1;?
bool?pin2;?
bool?pin3;?
bool?pin4;?
int?pin5;?
void?setup?() {?
pinMode?(?2?,?OUTPUT?);?
pinMode?(?3?,?OUTPUT?);?
pinMode?(?5?,?OUTPUT?);?
pinMode?(?6?,?OUTPUT?);?
pinMode?(?9?,?OUTPUT?);
SD?.?begin?(?4?);?
The Ethernet?.?begin?(mac, ip);?
? server.?begin?();?
? pin1 = pin2 = pin3 = pin4 =?0?;?
}
void?loop?() {?
// listen for incoming clients?
EthernetClient?client = server.?available?();?
if?(client) {
// an http request ends with a line?
boolean?currentLineIsBlank = true;?
while?(client.?connected?()) {?
if?(client.?available?()) {?
char?c = client.?read?();?
if?(req_index <(REQ_BUF_SZ -?1?)) {?
????????? HTTP_req [req_index] = c;?// save HTTP request character
????????? req_index ++;?
??????? }?
if?(c ==?' n'?&& currentLineIsBlank) {?
if?(StrContains (HTTP_req,?"GET /"?) || StrContains (HTTP_req,?"GET /index.htm"?)) {
??????????? client.?println?(?"HTTP / 1.1 200 OK"?);?
??????????? client.?println?(?"Content-Type: text / html"?);?
??????????? client.?println?(?"Connnection: close"?);?
??????????? client.?println?();?
??????????? webFile =?SD?.?open?(?"index.htm"?);?
????????? }?else?if?(StrContains (HTTP_req,?"GET /favicon.ico"?)) {?
??????????? webFile =?SD?.?open?(?"favicon.ico"?);?
if(webFile) {?
????????????? client.?println?(?"HTTP / 1.1 200 OK"?);?
????????????? client.?println?();?
??????????? }?
????????? }?else?if?(StrContains (HTTP_req,?"GET /temp.png"?)) {?
??????????? webFile =?SD?.?open?(?"temp.png"?);?
if?(webFile) {?
????????????? client.?println?(?"HTTP / 1.1 200 OK"?);?
????????????? client.?println?();?
??????????? }?
????????? }?else?if?(StrContains (HTTP_req,"GET /humid.png"?)) {?
??????????? webFile =?SD?.?open?(?"humid.png"?);?
if?(webFile) {?
????????????? client.?println?(?"HTTP / 1.1 200 OK"?);?
????????????? client.?println?();?
??????????? }?
????????? }?else?if?(StrContains (HTTP_req,?"GET /flame.png"?)) {?
??????????? webFile =?SD?.?open?(?"flame.png"?);?
if?(webFile) {?
????????????? client.?println?(?"HTTP / 1.1 200 OK");?
????????????? client.?println?();?
??????????? }?
????????? }?else?if?(StrContains (HTTP_req,?"GET /my.css"?)) {?
??????????? webFile =?SD?.?open?(?"my.css"?);?
if?(webFile) {?
????????????? client.?println?(?"HTTP / 1.1 200 OK"?);?
????????????? client.?println?();?
??????????? }?
????????? }?else?if?(StrContains (HTTP_req,?"ajax_flame"?)) {?
??????????? sendBaseAnswer (client);?
intsmoke_gas =?0?;?// pin on which MQ-2 is connected?
int?sensorReading =?analogRead?(smoke_gas);?
int?chk;?
??????????? chk = DHT.?read?(DHT11_PIN);?
??????????? client.?print?(sensorReading);?
??????????? client.?print?(?":"?);?
??????????? client.?print?(DHT.temperature);?
??????????? client.?print?(?":"?);?
??????????? client.?print?(DHT.humidity);?
??????????? client.?print?(?":"?);
??????????? client.?print?((?digitalRead?(?2?))??"1"?:?"0"?);?
??????????? client.?print?(?":"?);?
??????????? client.?print?((?digitalRead?(?3?))??"1"?:?"0"?);?
??????????? client.?print?(?":"?);?
??????????? client.?print?((?digitalRead?(?5?))??"1"?:?"0"?);?
??????????? client.":"?);?
??????????? client.?print?((?digitalRead?(?6?))??"1"?:?"0"?);?
??????????? client.?print?(?":"?);?
??????????? client.?print?(pin5);
????????? }?else?if?(StrContains (HTTP_req,?"setpin? pin = 1"?)) {?
??????????? pin1 =! pin1;?
digitalWrite?(?2?, pin1);?
??????????? sendBaseAnswer (client);?
????????? }?else?if?(StrContains (HTTP_req,?"setpin? pin = 2"?)) {?
??????????? pin2 =! pin2;?
digitalWrite?(?3?, pin2);?
??????????? sendBaseAnswer (client);?
????????? }?else?if?(StrContains (HTTP_req,?"setpin? pin = 3"?)) {?
??????????? pin3 =! pin3;?
digitalWrite?(?5?, pin3);
??????????? sendBaseAnswer (client);?
????????? }?else?if?(StrContains (HTTP_req,?"setpin? pin = 4"?)) {?
??????????? pin4 =! pin4;?
digitalWrite?(?6?, pin4);?
??????????? sendBaseAnswer (client);?
????????? }?else?if?(StrContains (HTTP_req,?"setpin? pin = 5"?)) {?
String?input = HTTP_req;?
int?posStart = input.indexOf (?"value ="?);?
int?posEnd = input.indexOf (?''?, posStart);?
String?param = input.substring (posStart +?6?, posEnd +?1?);
??????????? pin5 = param.toInt ();?
analogWrite?(?9?, pin5);?
??????????? sendBaseAnswer (client);?
????????? }
if?(webFile) {?
while?(webFile.?available?()) {?
????????????? client.?write?(webFile.?read?());?// send web page to client
??????????? }?
??????????? webFile.?close?();?
????????? }?
????????? req_index =?0?;?
????????? StrClear (HTTP_req, REQ_BUF_SZ);?
break?;?
??????? }?
if?(c ==?' n'?) {?
// // you're starting a new line
????????? currentLineIsBlank = true;?
??????? }?else?if?(c! =?' r'?) {
// you gotten a character on the current line
????????? currentLineIsBlank = false;?
??????? }?
????? }?
??? }?
// give the data?
delay?(?1?);?
// close the connection:
??? client.?stop?();?
? }?
}?
void?sendBaseAnswer (?EthernetClient?client) {?
? client.?println?(?"HTTP / 1.1 200 OK"?);?
? client.?println?(?"Content-Type: text / html"?);?
? client.?println?(?"Connnection: close"?);?
? client.println?();?
}?
void?StrClear (?char?* str,?char?length)?
{?
for?(?int?i =?0?; i <length; i ++) {?
??? str [i] =?0?;?
? }?
}
char?StrContains (?char?* str,?char?* sfind)?
{?
char?found =?0?;?
char?index =?0?;?
char?len;?
? len = strlen (str);?
if?(strlen (sfind)> len) {?
return?0?;?
? }?
while?(index <len) {?
if?(str [index] == sfind [found]) {?
????? found ++;?
if?(strlen (sfind) == found) {?
return?1?;?
????? }?
??? }?
else?{?
????? found =?0?;?
??? }
??? index ++;?
? }?
return?0?;?
}
| Refactoring?is the process of improving previously written code by changing its internal structure in such a way that does not affect external behavior. |
dht11 DHT;?
File?webFile;?
char?HTTP_req [REQ_BUF_SZ] = {?0?};?// buffered HTTP request stored as null terminated string?
char?req_index =?0?;?// index into HTTP_req buffer?
byte?mac [] = {?0xDE?,?0xAD?,?0xBE?,?0xEF?,?0xFE?,?0xED?};?
IPAddress?ip (?192?,?168?,?0?,?20?);
EthernetServer?server (?80?);?
bool?pin1;?
bool?pin2;?
bool?pin3;?
bool?pin4;?
int?pin5;?
void?setup?() {?
pinMode?(?2?,?OUTPUT?);?
pinMode?(?3?,?OUTPUT?);?
pinMode?(?5?,?OUTPUT?);?
pinMode?(?6?,?OUTPUT?);?
pinMode?(?9?,?OUTPUT?);
SD?.?begin?(?4?);?
The Ethernet?.?begin?(mac, ip);?
? server.?begin?();?
? pin1 = pin2 = pin3 = pin4 =?0?;?
}
void?loop?() {?
// listen for incoming clients?
EthernetClient?client = server.?available?();?
if?(client) {
// an http request ends with a line?
boolean?currentLineIsBlank = true;?
while?(client.?connected?()) {?
if?(client.?available?()) {?
char?c = client.?read?();?
if?(req_index <(REQ_BUF_SZ -?1?)) {?
????????? HTTP_req [req_index] = c;?// save HTTP request character
????????? req_index ++;?
??????? }?
if?(c ==?' n'?&& currentLineIsBlank) {?
if?(StrContains (HTTP_req,?"GET /"?)) {?
if?(StrContains (HTTP_req,?"/"?)
??????????????? ||?StrContains (HTTP_req,?"/index.htm"?)) {?
????????????? sendHtmlFile (client,?"index.htm"?);?
??????????? }?else?if?(StrContains (HTTP_req,?"/favicon.ico"?)) {?
????????????? sendFile (client,?"favicon.ico"?);?
??????????? }?else?if?(StrContains (HTTP_req,?"/temp.png"?)) {?
????????????? sendFile (client,?"temp.png"?);?
??????????? }?else?if?(StrContains (HTTP_req,?"/humid.png"?)) {?
????????????? sendFile (client,?"
??????????? }?else?if?(StrContains (HTTP_req,?"/flame.png"?)) {?
????????????? sendFile (client,?"flame.png"?);?
??????????? }?else?if?(StrContains (HTTP_req,?"/my.css"?)) {?
????????????? sendFile (client,?"my.css"?);?
??????????? }?else?if?(StrContains (HTTP_req,?"ajax_flame"?)) {?
????????????? sendBaseAnswer (client);?
int?smoke_gas =?0?;?// pin on which MQ-2 is connected?
int?sensorReading =?analogRead?(smoke_gas);?
intchk;?
????????????? chk = DHT.?read?(DHT11_PIN);
char?buff [?32?];?
????????????? sprintf (buff,?"% d:% d:% d:% d:% d:% d:% d:% d:"?,?
????????????????????? sensorReading, DHT.temperature, DHT.humidity,?
digitalRead?(?2?),?digitalRead?(?3?) ,?digitalRead?(?5?),?digitalRead?(?6),?
????????????????????? pin5);?
????????????? client.?println?(buff);?
??????????? }?else?if?(StrContains (HTTP_req,?"setpin?"?)) {?
if?(StrContains (HTTP_req,?"pin = 1"?)) {
??????????????? pin1 =! pin1;?
digitalWrite?(?2?, pin1);?
????????????? }?else?if?(StrContains (HTTP_req,?"pin = 2"?)) {?
??????????????? pin2 =! pin2;?
digitalWrite?(?3?, pin2);?
????????????? }?else?if?(StrContains (HTTP_req,?"pin = 3"?)) {?
??????????????? pin3 =! pin3;?
digitalWrite?(?5?, pin3);?
????????????? }?else?if?(StrContains (HTTP_req,?"pin = 4"?)) {?
??????????????? pin4 =! pin4;?
digitalWrite?(?6, pin4);?
????????????? }?else?if?(StrContains (HTTP_req,?"pin = 5"?)) {?
String?input = HTTP_req;?
int?posStart = input.indexOf (?"value ="?);?
int?posEnd = input.indexOf (?''?, posStart);?
String?param = input.substring (posStart +?6?, posEnd +?1?);?
??????????????? pin5 = param.toInt ();?
analogWrite?(?9?, pin5);?
????????????? }?
????????????? sendBaseAnswer (client);?
??????????? }?
????????? }?
????????? req_index =?0?;
????????? StrClear (HTTP_req, REQ_BUF_SZ);?
break?;?
??????? }?
if?(c ==?' n'?) {?
// // you're starting a new line
????????? currentLineIsBlank = true;?
??????? }?else?if?(c! =?' r'?) {?
// //?)?
????????? ;?
??????? }?
????? }?
??? }?
// give the data?
delay?(?1?);?
// close the connection:
??? client.?stop?();?
? }?
}?
bool?sendHtmlFile (EthernetClient?client,?char?* fileName) {?
? webfile =?the SD?.?open?(fileName);?
? sendBaseAnswer (client);?
return?sendFile (client, webFile);?
}?
bool?sendFile (?EthernetClient?client,?char?* fileName) {?
? webFile =?SD?.?open?(fileName);?
? sendHttpOkAnswer (client);?
? client.?println?();?
return?sendFile (client, webFile);?
}?
bool?sendFile (?EthernetClient?client,?File?& webFile) {?
if(webFile) {?
while?(webFile.?available?())?
????? client.?write?(webFile.?read?());?// send web page to client
??? webFile.?close?();?
return?1?;?
? }?
return?0?;?
}?
void?sendBaseAnswer (?EthernetClient?client) {?
? sendHttpOkAnswer (client);?
? client.?println?(F (?"Content-Type: text / html"?));?
? client.?println?(F (?"Connection: close"?));?
? client.?println?();
}?
void?sendHttpOkAnswer (?EthernetClient?client) {?
? client.?println?(F (?"HTTP / 1.1 200 OK"?));?
}
void?StrClear (?char?* str,?char?length) {?
for?(?int?i =?0?; i <length; i ++) {?
??? str [i] =?0?;?
? }?
}
char?StrContains (?char?* str,?char?* sfind) {?
char?found =?0?;?
char?index =?0?;?
char?len;?
? len = strlen (str);?
if?(strlen (sfind)> len) {?
return?0?;?
? }?
while?(index <len) {?
if?(str [index] == sfind [found]) {?
????? found ++;?
if?(strlen (sfind) == found) {?
return?1?;?
????? }?
??? }?
else?{?
????? found =?0?;?
??? }?
??? index ++;
? }?
return?0?;?
}
List of electronic components.
| Name | Type of | amount | Score |
|---|---|---|---|
| Arduino | UNO R3 | one | To find |
| Ethernet Shield | W5100 | one | To find |
| Temperature and humidity sensor | DHT-11 | one | To find |
| Smoke and gas sensor | MQ-2 | one | To find |
| Relay module | 4 channels | one | To find |
| Wires Dupont Papa Mama | Wires Dupont Papa Mama | Kit | To find |
| Cashback on Aliexpress | |||
