NORVI ENET: ESP32 + Ethernet W5500 Circuit analysis
NORVI ENET: ESP32 + Ethernet W5500 Circuit analysis
0
Components
Hardware components
WIZnet - W5500
x 1
WIZnet - WIZ850io
x 1
Project description

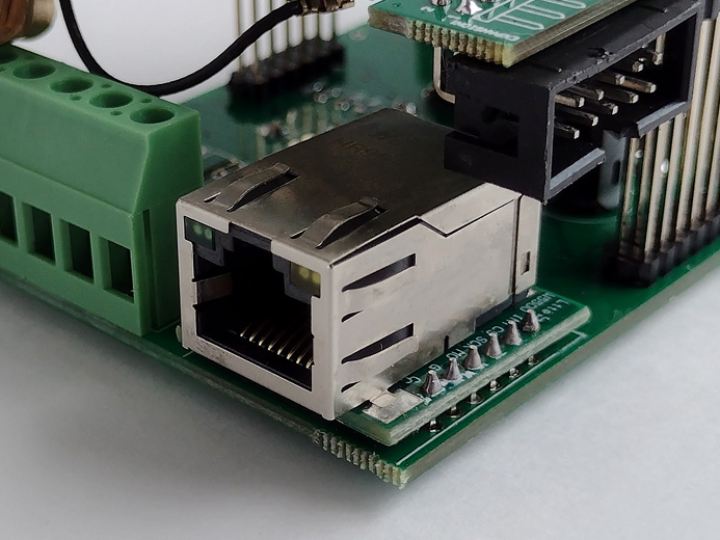

We continue our acquaintance with Norvi controllers and this time we will analyze the device and purpose of the rather advanced model AE06-T, which belongs to the NORVI ENET family. The controllers of this line have all the advantages of the previously discussed NORVI IIOT devices , and in addition - an Ethernet network interface on the W5500 chip, a built-in card reader, an external antenna and a Micro-USB connector. Here we have a controller with two interfaces (Wi-Fi and wired Ethernet), which allows us to create interesting automation solutions with connections to various networks…
