EtherMega R3 (Arduino-Compatible Board Based System with W5500 Integration)

The EtherMega R3 is a user-friendly Arduino-compatible board with Mega2560 features and on-board Ethernet(W5500) with PoE support.

COMPONENTS Hardware components

WIZnet - W5100

x 1

PROJECT DESCRIPTION

EtherMega R3

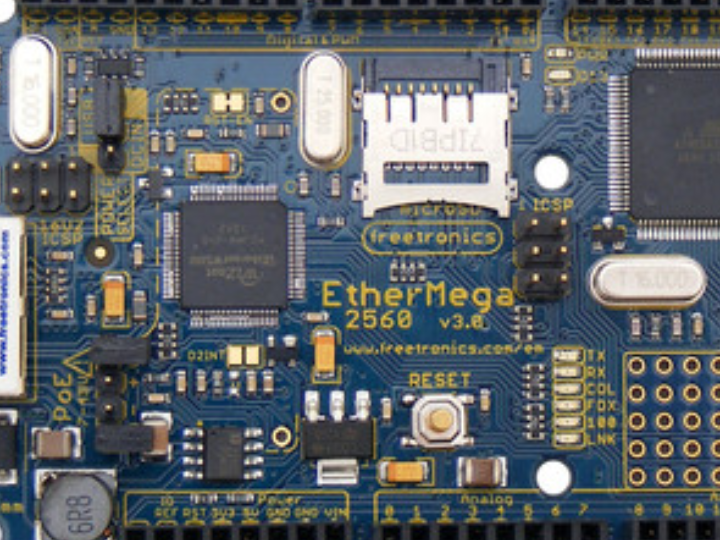

The EtherMega R3 is a 100% Arduino-compatible board based on the existing Mega2560, but with improvements and updates for features and ease of use. It also includes on-board Ethernet with PoE (Power-over-Ethernet) support.

Features:

High-efficiency switchmode power supply (input voltage 7-28Vdc)
Micro-USB Connector
microSD card slot
10/100 Ethernet using the Wiznet W5100 chip
Overlay guide where you need it (both top and bottom)
D13 pin works for everything

You can learn more at:

https://www.superhouse.tv/ethermega

INSTALLATION

The design is saved as an EAGLE project. EAGLE PCB design software is available from www.cadsoftusa.com free for non-commercial use. To use this project download it and place the directory containing these files into the "eagle" directory on your computer. Then open EAGLE and navigate to Projects -> eagle -> EtherMegaR3.

DISTRIBUTION

The specific terms of distribution of this project are governed by the license referenced below.

LICENSE

This work is licensed under the Creative Commons Attribution-Share Alike License.
To view a copy of this license, visit

http://creativecommons.org/licenses/by-sa/3.0/
http://creativecommons.org/licenses/by-sa/3.0/legalcode

or send a letter to

Creative Commons
171 Second Street, Suite 300
San Francisco
California, 94105
USA

The "license" folder within this repository also contains copies of the licences referenced above.

CREDITS

The EtherMega was designed by Marc Alexander (marc@freetronics.com) and Jonathan Oxer (jon@freetronics.com) based on previous work by the Arduino team (www.arduino.cc/playground/Main/People) which includes:

Massimo Banzi
David Cuartielles
Tom Igoe
Gianluca Martino
David A. Mellis
