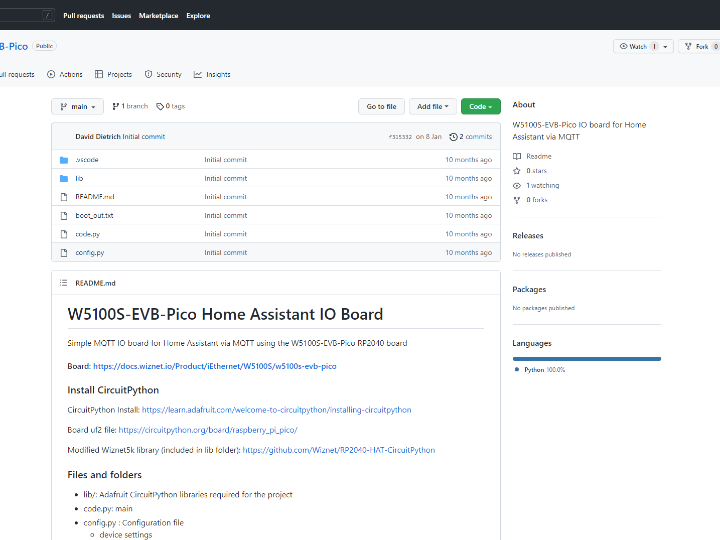

# W5100S-EVB-Pico Home Assistant IO Board

Simple MQTT IO board for Home Assistant via MQTT using the W5100S-EVB-Pico RP2040 board

Board: https://docs.wiznet.io/Product/iEthernet/W5100S/w5100s-evb-pico

Install CircuitPython

CircuitPython Install: https://learn.adafruit.com/welcome-to-circuitpython/installing-circuitpython

Board uf2 file: https://circuitpython.org/board/raspberry_pi_pico/

Modified Wiznet5k library (included in lib folder): https://github.com/Wiznet/RP2040-HAT-CircuitPython

Files and folders

• lib/: Adafruit CircuitPython libraries required for the project
• code.py: main
• config.py : Configuration file
  • device settings
  • mqtt settings
  • IO settings

How to use it

• Install Circuit Python
• Set MQTT settings in config.py / broker
• Set device settings in config.py / device
• Set IO settings in config.py / IOs
  • Available options in config.py
• Copy all the files and the lib dir to CIRCUITPY drive
• Program will start automatically
