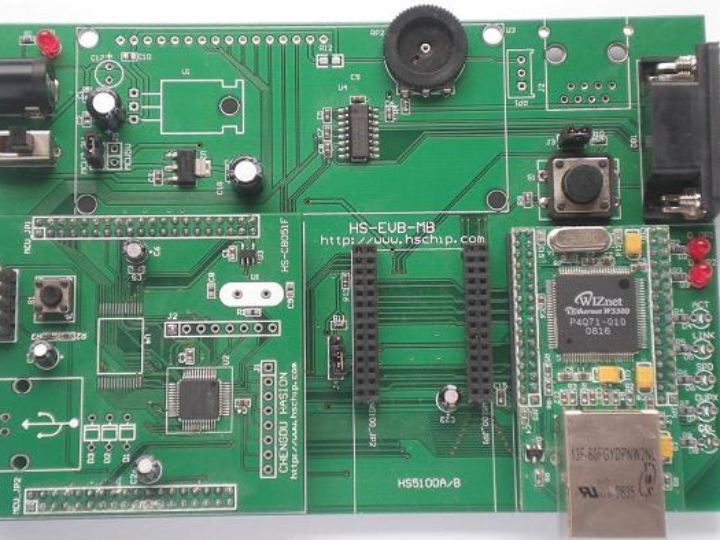

W5300 evaluation board - HS-EVB-W5300/C8051F340 & HS-EVB-W5300/Mega64

Components

Hardware components

Project description

DETAILS W5300 evaluation board – HS-EVB-W5300/C8051F340 & HS-EVB-W5300/Mega64 by AXC In the structure of evaluation Board(Board + HS-NM5300 module + CPU sub Board), all Boards and HS-NM5300 module for evaluation boards are the same, different CPU daughter Board, and composed of different assessment boards. 1. HS-EVB-W5300/C8051F340 Main features: CPU C8051F340 microcontroller, the user can very easily port software to any C8051Fxxx SCM; Monolithic integrated circuit with direct bus and W5300 interfaces; C2 interface for single-chip software debugging; CPU and W5100 3.3V supply voltage; It…
