Spartan-3AN FPGA development board with Ethernet

Components

Hardware components

Project description

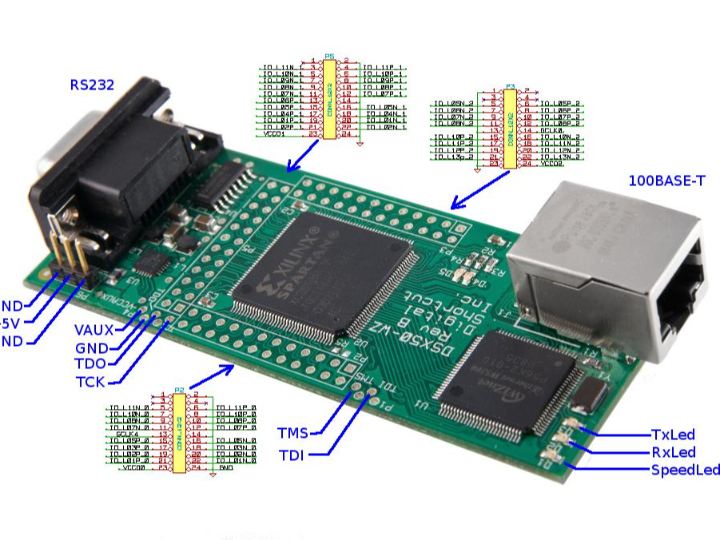

DETAILS The development kit of DSX50WZ board combines XC3S50AN Spartan-3AN and WIZnet W5300. This small factor board may be configured as a very efficient web server and still has most of the XC3S50 FPGA resources available for your application.If you are starting a new project with FPGA connected to Ethernet, want to learn FPGA or just need a web server/network connection. The block Diagram of DSX50WZ is as shown below. Feature FEATURE DESCRIPTION FPGA Spartan-3 XC3S50AN from Xilinx • 50k system gates, 1,584 Logic Cells, 1,408 CLB Flip-Flops • 54k bits of Block RAM bits in 3 blocks • 627k…
