NET7026 : ARM7TDMI with W5300 Module

Components

Hardware components

Project description

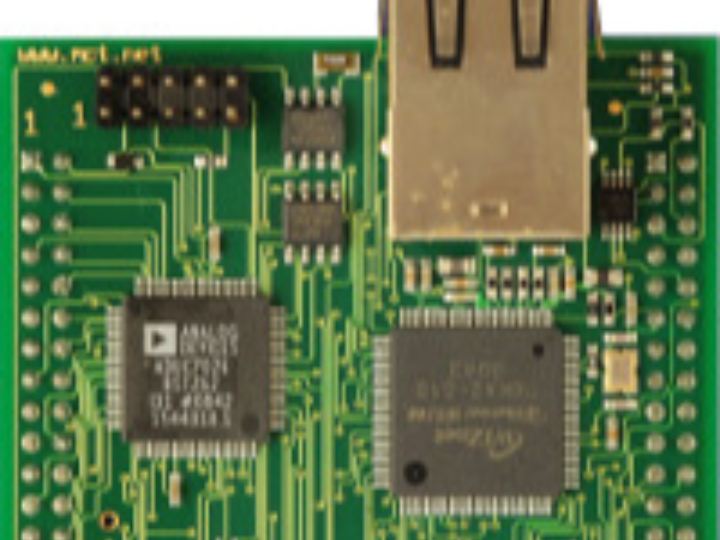

NET7026 : ARM7TMDI with W5300 Module by MCT Features 59mm x 60mm, multilayer PCB ARM7TDMI (ADuC7026, analog devices) 41.78 MHz clock using PLL set 62KB Flash 8KB RAM (ISP) 1 MByte Serial Flash 1MByte less RAM UART, SPI, I2C W5300 plus RJ45 Ethernet controller 10 x 12 bit A/D converter (1Megasample) 4 x 12 bit D/A converter (10us) Comparator, voltage reference, temperature sensor, PLA Max 13 free parallel I/o lines 2 x timer 16 bit, 6 x PWM Wake-up timer 16 bit RTC DS1629 Watchdog 10pol. connector for RS232 level converter IF232LP Supply voltage 3, 3V Power consumption typical 270mA Weight…
