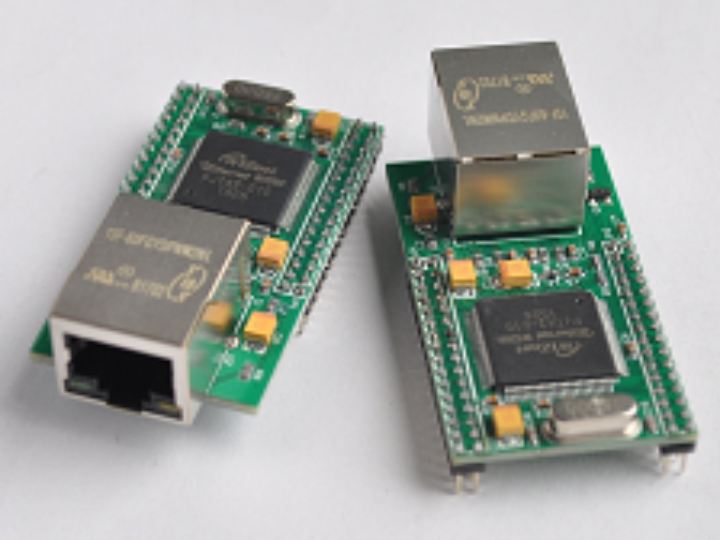

Hs-NM5300a module integrates W5300 with necessary peripheral devices on a circuit board to provide customers with convenient applications.

WIZnet

Published April 04, 2023

Original author: Hasion Electronics · ChinaOriginal source (new tab)

HS-NM5300

Components

Hardware components
W5300

WIZnet - W5300

x 1

Project description

INTRODUCTION Hs-nm5300a module integrates W5300 with necessary peripheral devices on a circuit board to provide customers with convenient applications. 1. It maintains all functions and performance of W5300; 2. Connect W5300 with MCU and lead out the power supply through the pin arrangement; 3. Rj-45 internal integrated network transformer, the network cable can be directly connected to the module; 4. The indicator light on rj-45 can indicate the Ethernet connection status of W5300; 5. Dc 3.3v power supply; 6. Strict aging test ensures high quality of products. FEATURES Supports hardwired…
