HS-NM5100SA

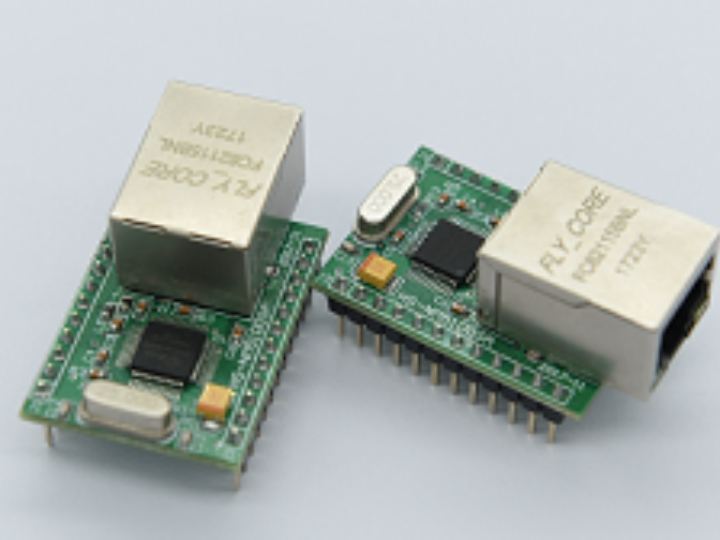

Hs-NM5100SA is a product that integrates W5100S with necessary peripheral components on a circuit board to provide customers with convenient
1
Components
Hardware components
WIZnet - W5100S
x 1
Project description
INTRODUCTION Hs-nm5100sa is a product that integrates W5100S with necessary peripheral components on a circuit board to provide customers with convenient applications. 1. It maintains all functions and performance of W5100S; 2. The W5100S and the MCU interface (SPI interface and parallel bus interface) are extracted through the plate-needle; 3. Rj-45 internal integrated network transformer, the network cable can be directly connected to the module; 4. The indicator light on rj-45 can indicate the Ethernet connection status of W5100S; 5. Dc 3.3v power supply; 6. Strict aging test ensures high…
