HS-EVBW5100S/STM32Z

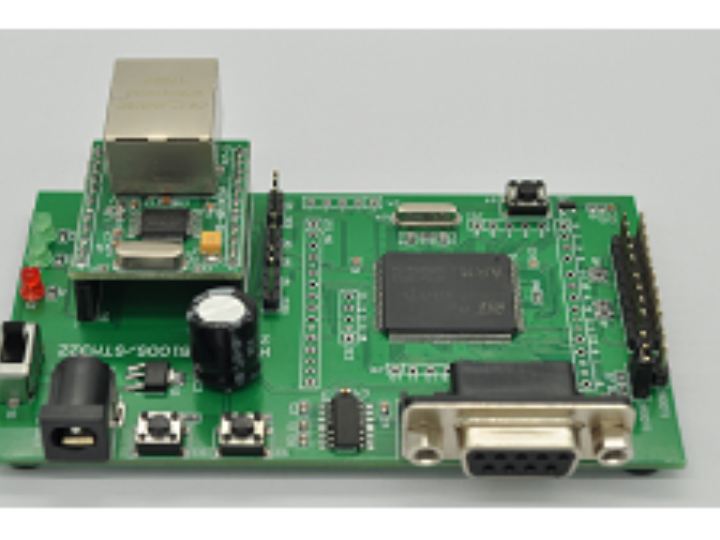

Hs-EVBW5100S /STM32Z is an evaluation board specially launched for the W5100S.
1
Components
Hardware components
WIZnet - W5100S
x 1
Project description
INTRODUCTION Hs-EVBW5100S /STM32Z is an evaluation board specially launched for the W5100S. Through jumper selection, the interface of 8-bit data parallel bus and SPI bus can be supported without changing the hardware circuit of evaluation board. The CPU adopts the most widely used STM32F103ZET of ST company. The 8-bit data bus interface of STM32F103ZET is used to connect with W5100S to improve the data exchange rate. SPI interface is also supported to simplify the connection of hardware circuits. To facilitate customer testing, hs-nm5100sa module is connected to the evaluation board…
