FPGA Development Board (XFC-102-LX45MB)

Components

Hardware components

Project description

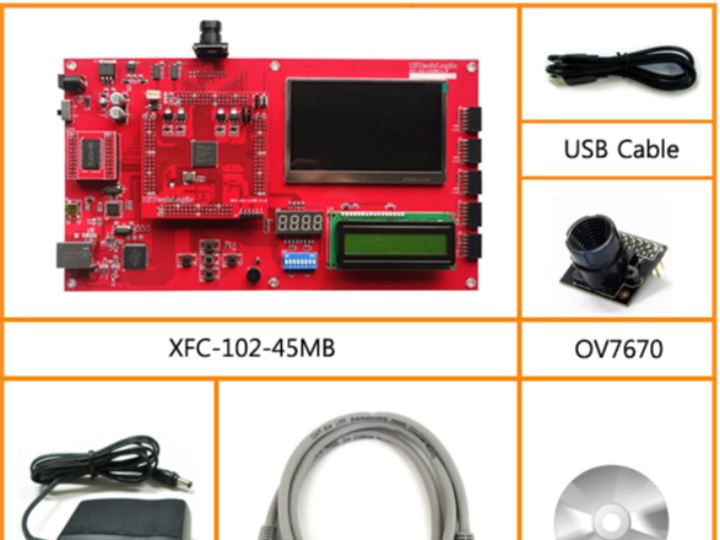

DETAILS This is a FPGA development board that has embedded Wiznet W5300 chip. Replaceable Add-on module for device upgrade and flexibility Two individual modules for different purposes(FPGA, Memory) Topped up with Xilinx’s XC6SLX45-CSG324 in Spartan-6 Family C-MOS Image Sensor : OV7670 Memory Module : SRAM (512K × 16bit) Ethernet Interface : W5300 Samsung TFT-LCD LTE-430WQ-F0A (480 × 272, 4.3¨ Wide) I/O Expansion board (LED, DIP SW, FND, CLCD, Buzzer) Logic circuit is built to control both digital and analogue Various field application Input power : DC5V Only(Adapt) Free ISE WebPack software…
