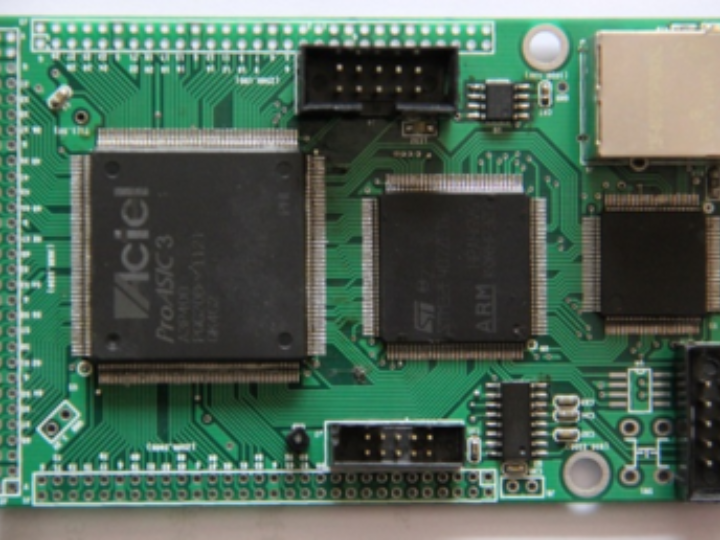

ARM + FPGA + Ethernet core board (STM32F407Z + A3P400Q208 + W5300) industrial-grade stability

Components

Hardware components

Project description

DETAILS V1.2 core board V1.2 core board is V1.1 on the basis of a series of improvements to the ARMand FPGA upgraded using CORTEX-M4 core, clocked at 168MHz. Features: Major improvements are the following: 1. reduce board space, increase the anti-jamming capability, more conducive to integration on the user’s bottom. 2. Extending the high-capacity serial FLASH memory various devices, industrial control systems to meet the state long-term storage. 3. Extend the CAN bus interface. 4. Increase the IO ports, a total of 99 months, compared with the first edition ( 46 points) increased by 53…
