ALTERA FPGA Development Kit (AFPE-003)

ALTERA FPGA Development Kit (AFPE-003)

WIZnet

Published April 25, 2023

Original author: Hiteclogic · South KoreaOriginal source (new tab)

ALTERA FPGA Development Kit (AFPE-003)

Components

Hardware components
W5300

WIZnet - W5300

x 1

Project description

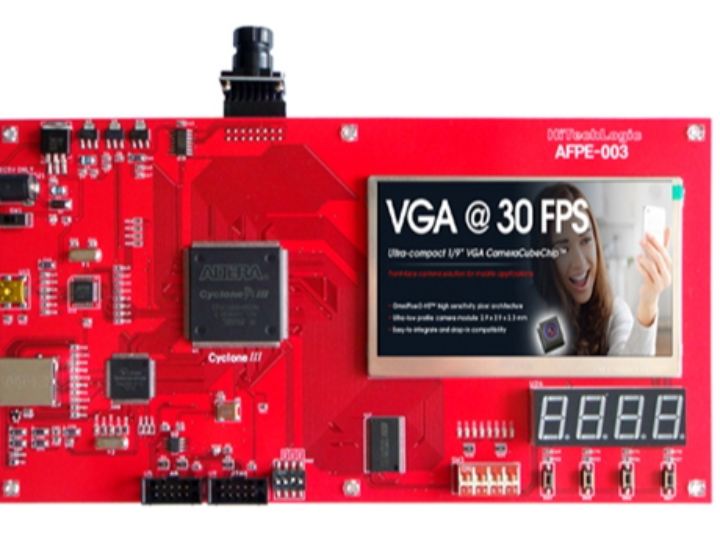

DETAILS The development kit of ALTERA FPGA (AFPE-003) released by Hiteclogic is a FPGA training board with EP3C16Q240C8N among the Cyclone Family from ALTERA. It provides user with image processing using C-MOS Image Sensor (OV7670) and Ethernet interface using W5300 from WIZnet implemented at code level (VHDL) with CD including the education exercise and teaching material. We are able to study through I/O(LED, Seven-Segment, DIP-Switch, Tactile Switch, USB to Serial), TFT-LCD(4.3″ Wide), Ethernet, OV7670 if you use the FPGA development kit. FEATURES Model Name AFPE-003 FPGA Cyclone-III…
