How do you control Ethernet, LCD, and LED Matrix all at once with a $1 STM32 Blue Pill?
STM32F103C8T6 (Blue Pill) + W5500 Multi-Display IoT Starter
0
Components
Hardware components
WIZnet - W5500
x 1
STMicroelectronics - STM32F103RCT6
x 1
Project description

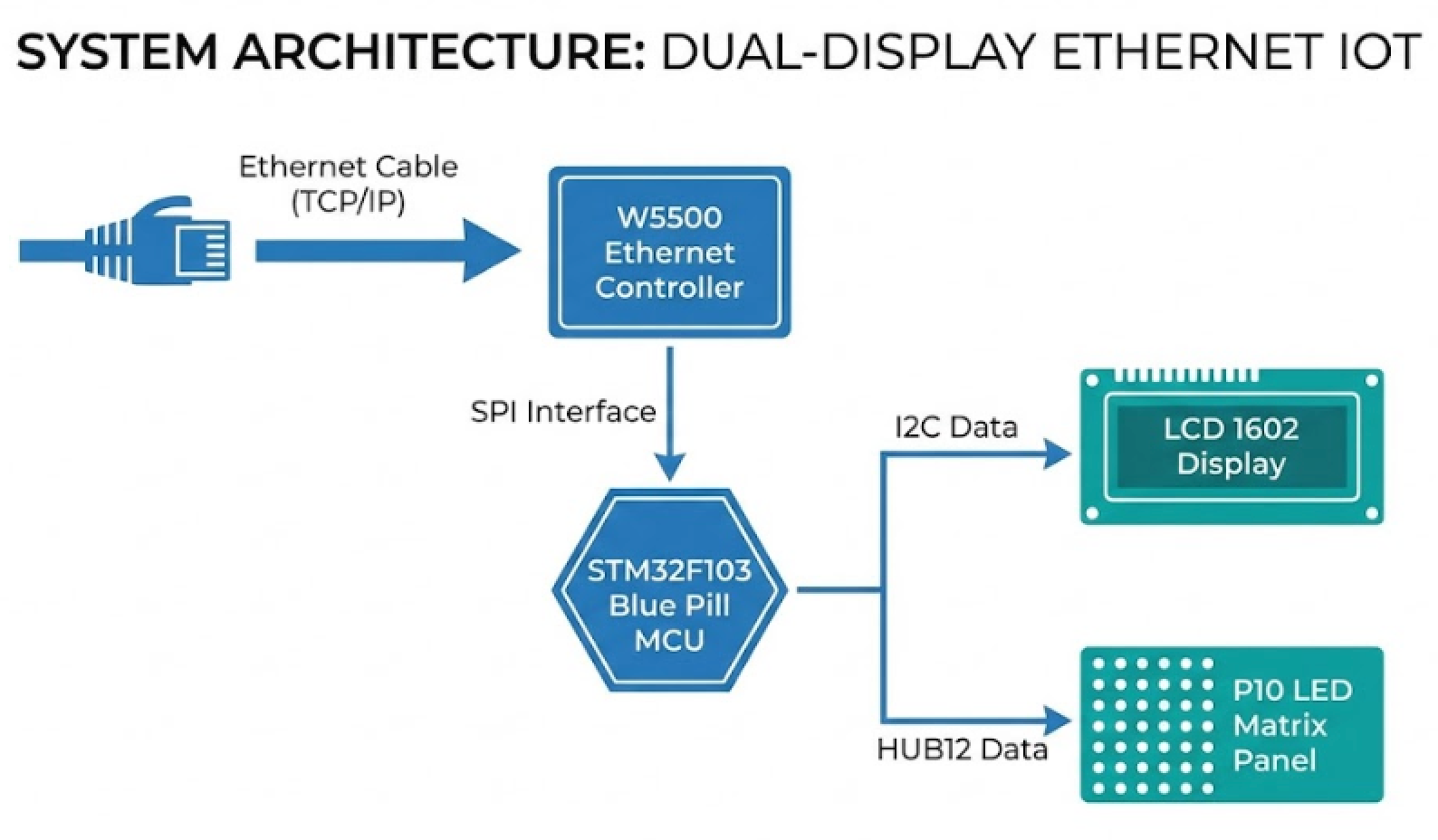

STM32F103C8T6 (Blue Pill) + W5500 Multi-Display IoT Starter A Vietnamese embedded developer built this open-source starter project that combines WIZnet's W5500 Ethernet module with STM32F103C8T6, routing received TCP data simultaneously to an LCD 1602 and a P10 LED Matrix — all in pure C with no OS. Started just 2 weeks ago and actively growing. Generated by Gemini Component Specification Role STM32F103C8T6 (Blue Pill) ARM Cortex-M3, 72MHz, 64KB Flash, 20KB RAM Main MCU W5500 Hardwired TCP/IP, SPI interface, up to 80MHz Ethernet communication LCD 1602 I2C 16x2 characters, PCF8574 I2C adapter…
