How to Build a Multi-Channel Industrial Weight Measurement System with Modbus TCP?

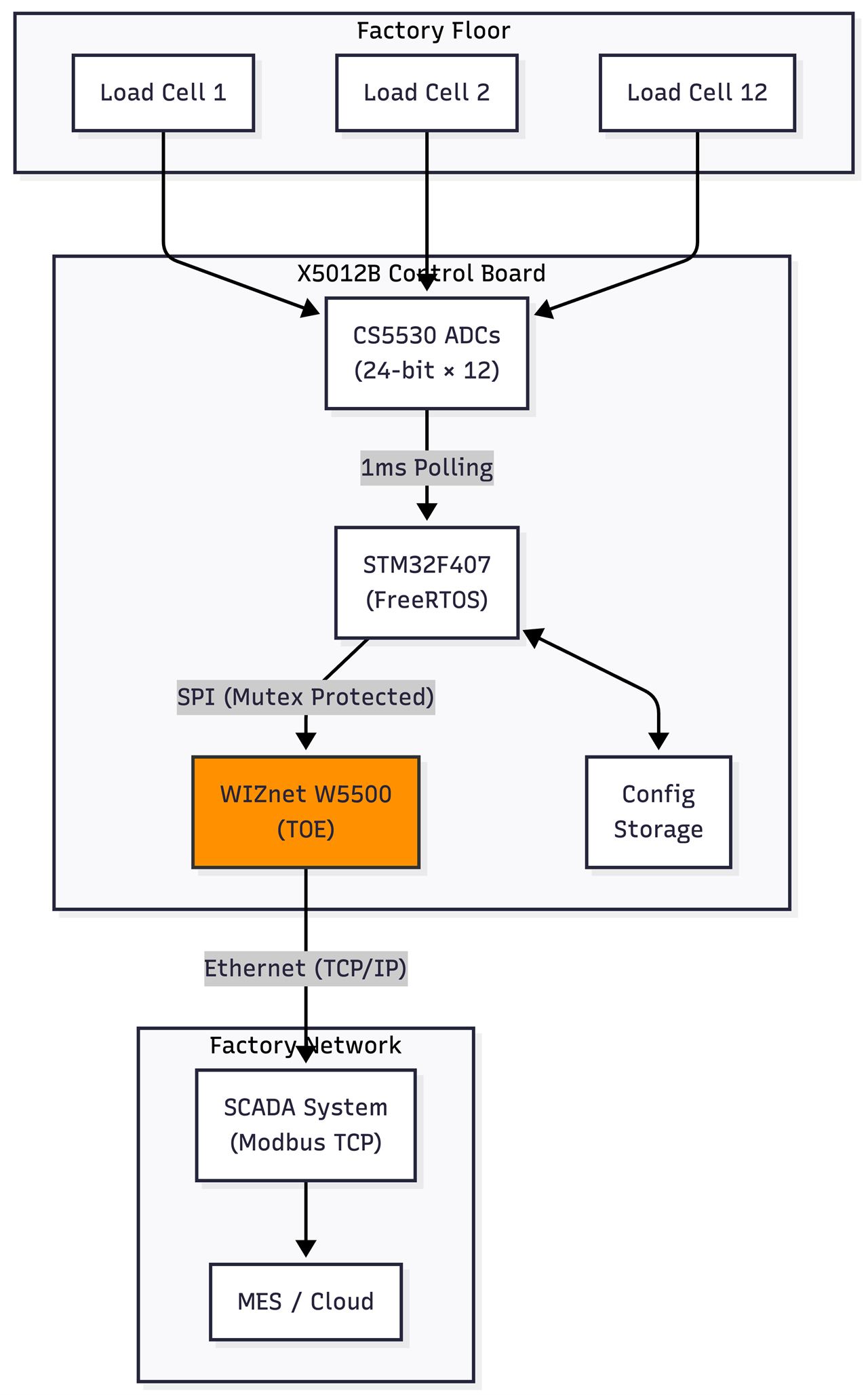

This is an industrial project that utilizes the WIZnet W5500 in an STM32F4 and FreeRTOS environment to transmit multi-channel weight data in real time.
0
Components
Hardware components
WIZnet - W5500
x 1
STMicroelectronics - STM32G0 microcontroller
x 1
STM32F407VETx Main MCU (Cortex-M4, 168MHz, 512KB Flash)
ARM - KEIL5
x 1
Project description

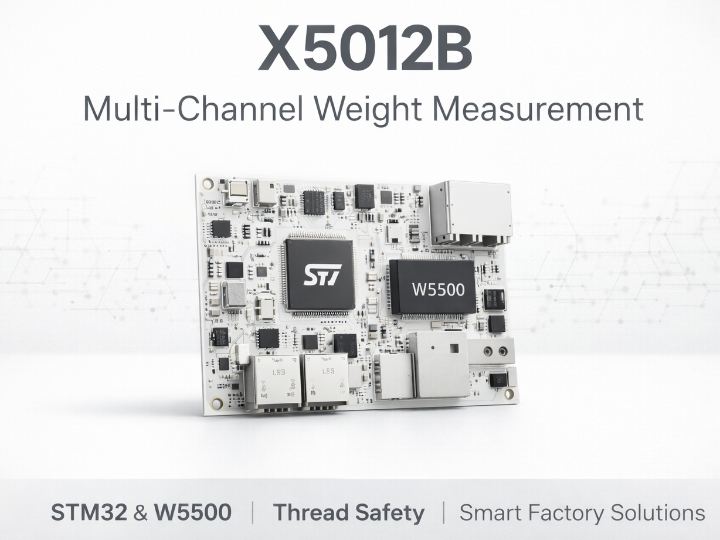

[English Version] Source Mention & Context Original Project by GZ (郭照) This project represents a production-grade industrial control system from China's embedded engineering sector. The author demonstrates expertise in multi-channel ADC systems, real-time operating systems, and industrial communication protocols. Based on web search analysis, this appears to be a B2B ODM project typical of China's industrial weighing equipment manufacturers serving factory automation, logistics, and food processing industries. 1. Definition/Introduction The X5012B is a 12-channel precision weighing system…
