RP2040 W5500 overSSL Coremark Test
This project compare the performance between dual RP2040 and single RP2040 when transfer data to OpenSSL server.
2
Components
Hardware components

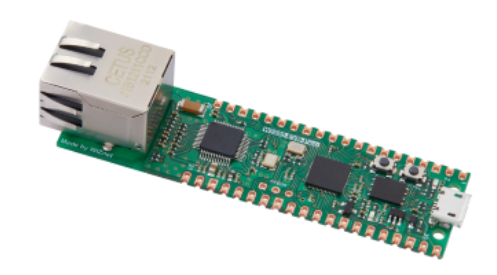

WIZnet - W5500-EVB-Pico
x 1
Project description
This project utilizes the W5500-EVB-Pico board to compare the performance when transmitting data received through SPI communication in Dual Board mode to an OpenSSL server via W5500. Additionally, it compares the performance when transmitting the same amount of data to an OpenSSL server via W5500 in Single Board mode.

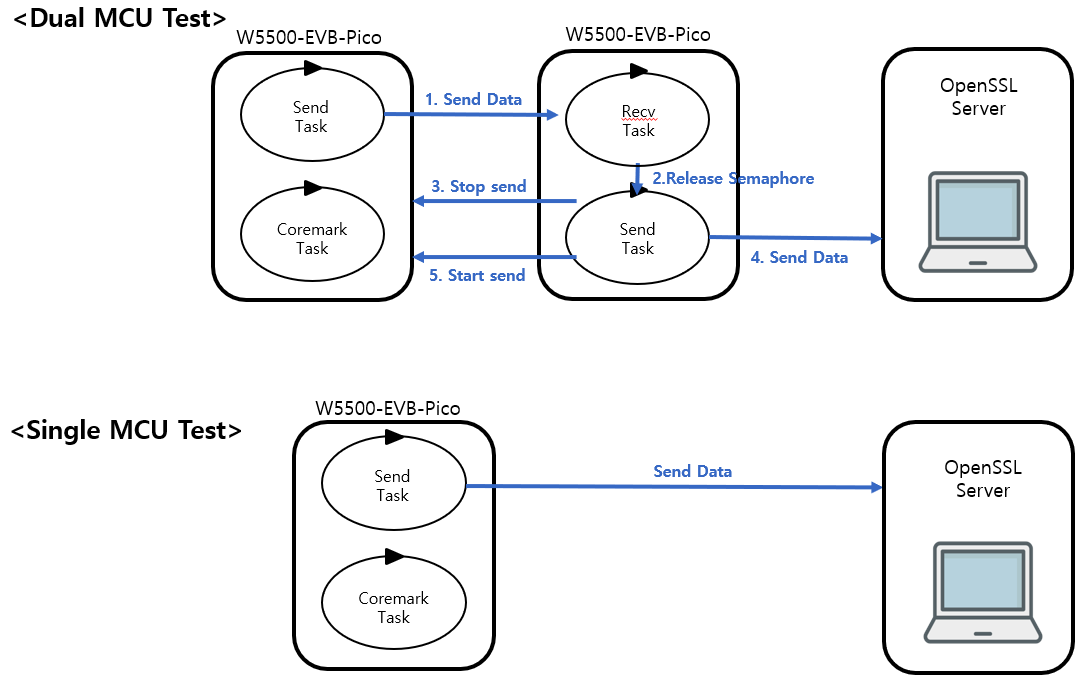

Dual Board coremark Test

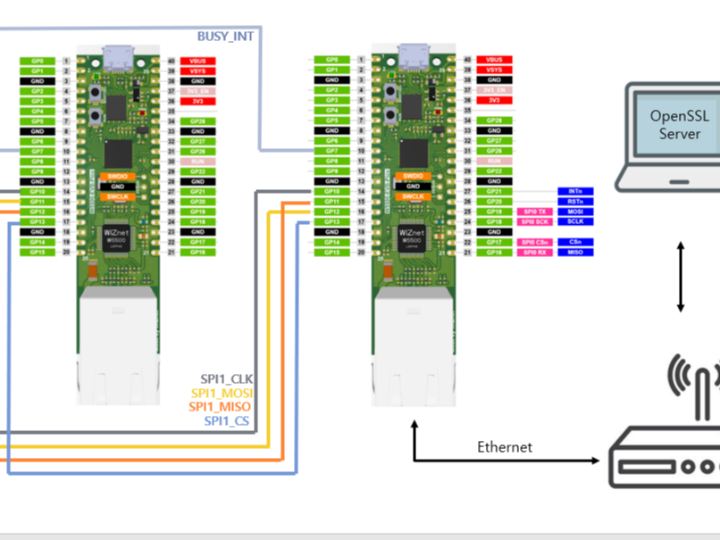

W5500-EVB-Pico(SPI Master) ---> W5500-EVB-Pico(SPI Slave&SSL client) ---> PC(OpenSSL server)
Single Board coremark Test
W5500-EVB-Pico(SSL client) ---> PC(OpenSSL server)

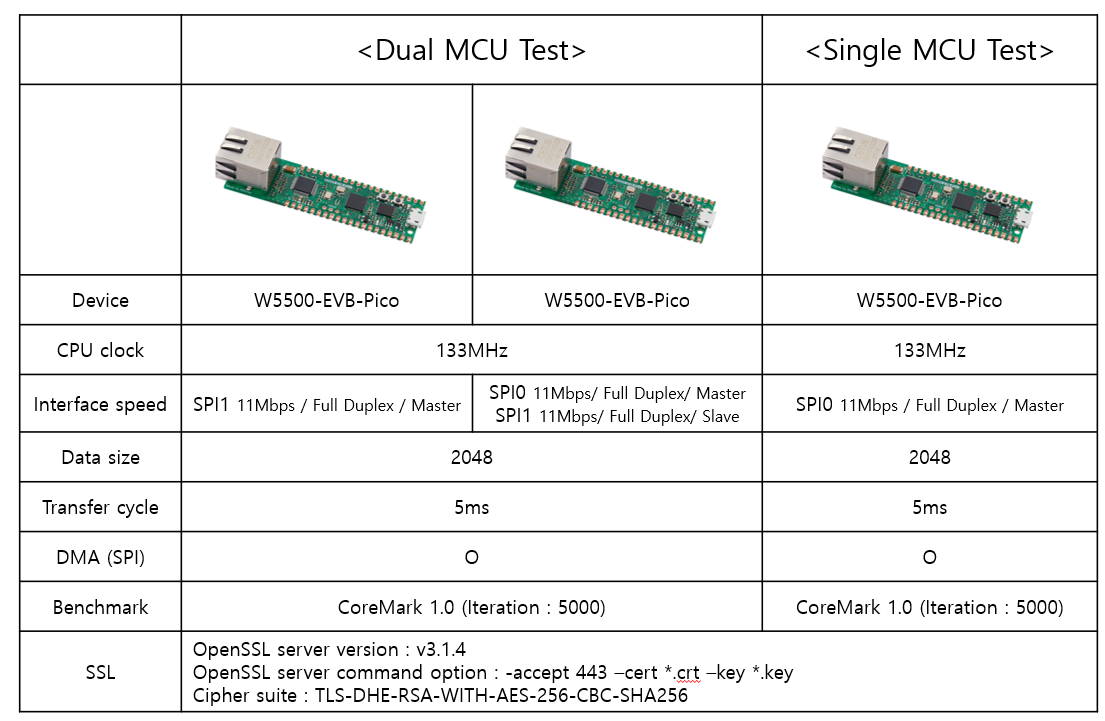

Test Condition
Hardware
Device : W5500-EVB-Pico
CPU clock : 133MHz
SPI : use DMA/ baudrate 11.0833Mbps
Software
Visual Studio Code : https://code.visualstudio.com/
FreeRTOS Example for RP2040 : https://github.com/Wiznet/RP2040-HAT-FREERTOS-C

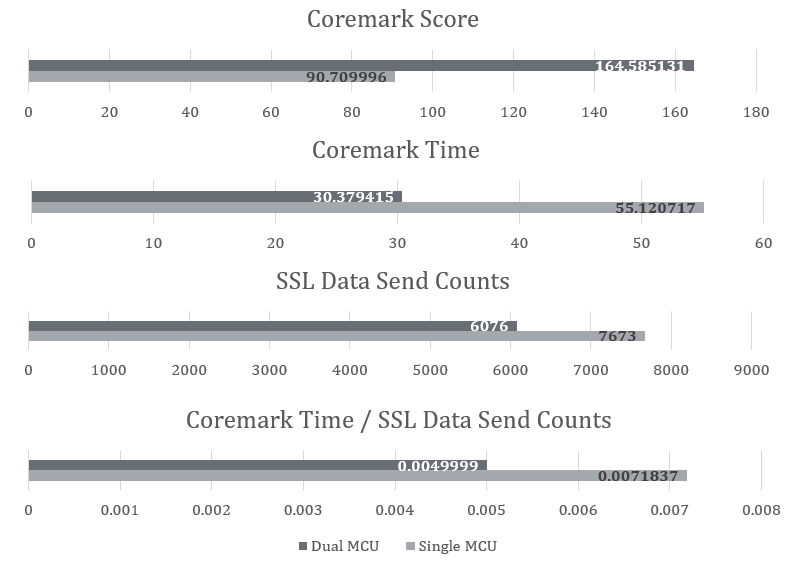

Test Result
Coremark score is 81% higher and the time to send data is 43.7% faster.
