W5500-EVB-PICO with MicroPython: Firmware Flashing and Ethernet Setup on RP2040

Learn how to flash official MicroPython v1.23.0 firmware onto the W5500-EVB-PICO board. This enables full TCP/IP stack (TCP, UDP, DHCP, DNS) support

ronpang

Published April 03, 2026

164 UCC

109 WCC

12 VAR

2 Followers

Original author: FreakStudio · ChinaOriginal source (new tab)

Components

Hardware components

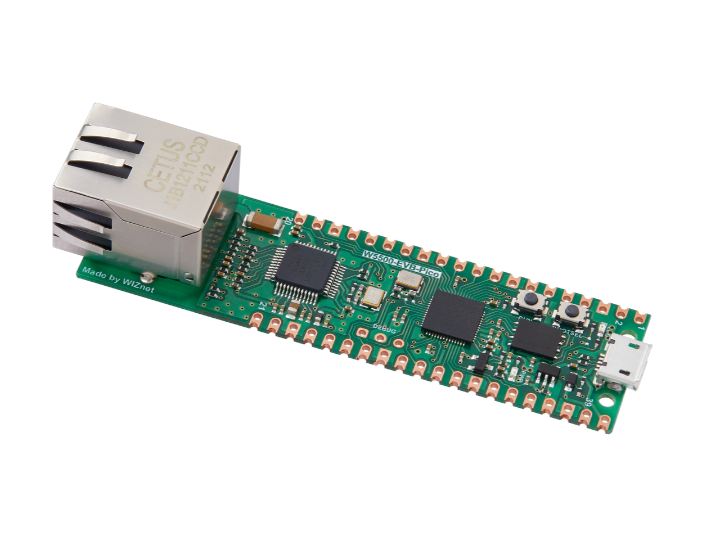

WIZnet - W5500-EVB-Pico

x 1

Project description

Mastering the W5500-EVB-Pico: Bridging Hardware Theory and MicroPython The documentation for the W5500-EVB-Pico marks a critical transition from general Ethernet theory to practical, hands-on deployment. While earlier tutorials established the importance of the IEEE 802.3 standard and the W5500’s hardwired TCP/IP stack, this software-centric guide focuses on the MicroPython ecosystem as the primary vehicle for network control. By utilizing the Raspberry Pi Pico’s RP2040 silicon alongside the W5500, the board provides a high-performance, low-complexity entry point for industrial IoT…
