Send sensor data on website using WIZnet w5500 and stm32

Send sensors data and display it on the web server using WIZnet W5500 ethernet module using stm32 f103 development board.

wiz_chandana

Published February 02, 2023

44 UCC

22 VAR

Original author: Siddhant Patel · IndiaOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

STMicroelectronics - STM32F103RCT6

x 1

WIZnet parts

W5500 Datasheet

Project description

This is a demonstration of taking data from our sensors and displaying it on the web server

WIZnet's 5500 ethernet module is used here.

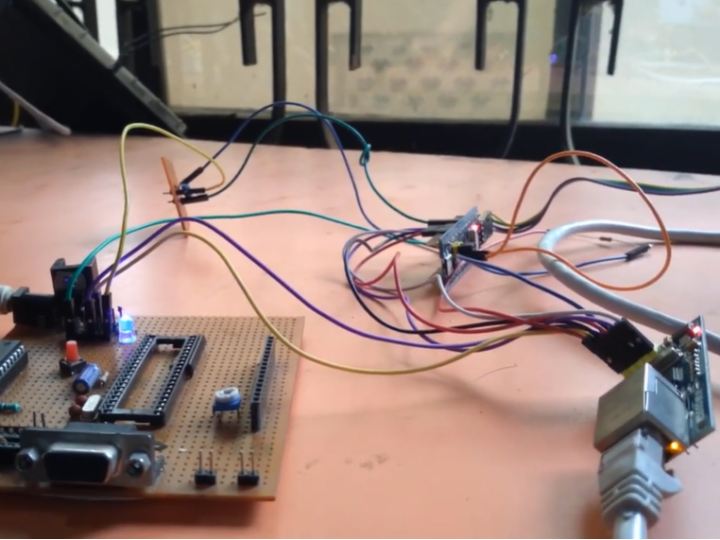

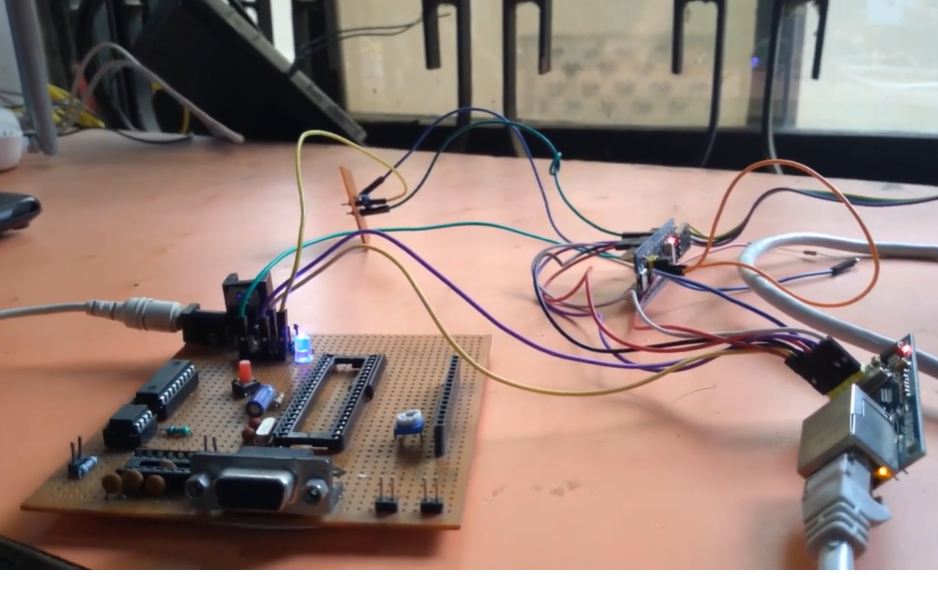

The stm32 f103 development board is used.
Potentiometer output is given to the internal ADC pin of stm32

we are going to change our potentiometer and take the ADC value and then

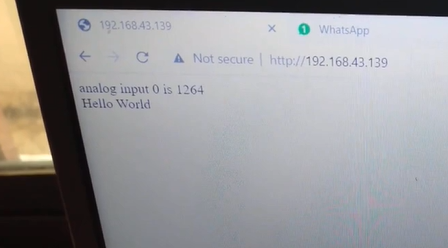

we will just display the digital output coming from our ADC value to our web server

As we vary the potentiometer, the values have been constantly changing in our web server
