Ethernet-Driven Smart Vision: AI-Powered Person Detection with W55RP20 and Arducam

This project integrates the W55RP20-EVB-Pico board with an Arducam camera to create an AI-powered person detection system

viktor

Published October 15, 2024

Ethernet-Driven Smart Vision: AI-Powered Person Detection with W55RP20 and Arducam

Components

Hardware components

Project description

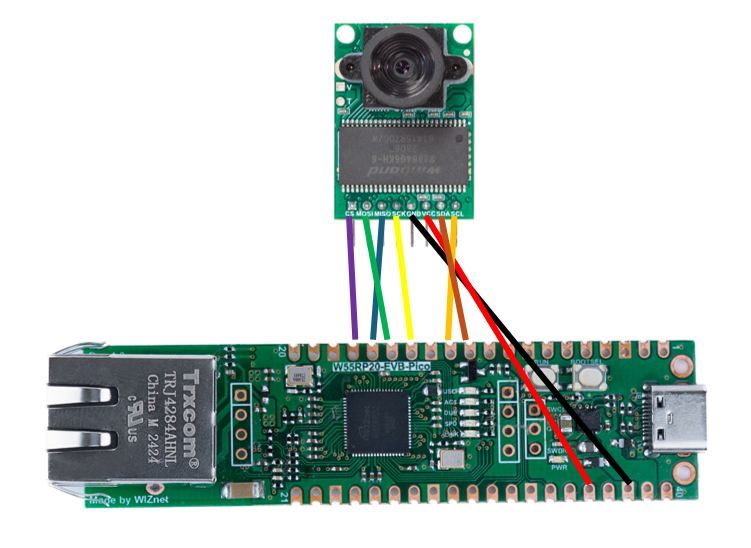

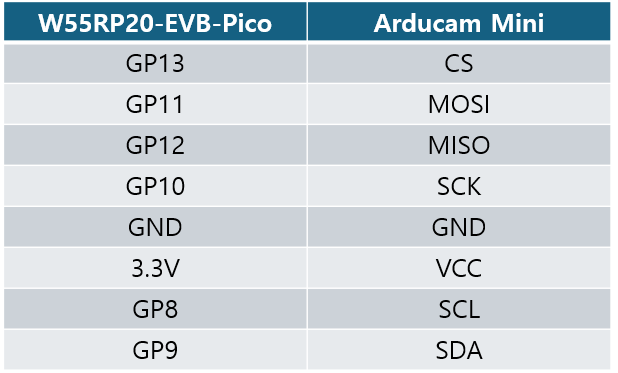

1. Project Introduction In February I implemented this project using W5100S-EVB-Pico and Arducam. With release of new W55RP20 chip, I thought it would be cool to reproduce the project but using single chip. 2. Hardware setup As W55RP20 is a SiP chip integrating RP2040 and W5500 in one product, I had to do a little update in the code. The dies are connected internally via general GPIO pins and PIO program is required to turn those pins to serve as SPI. The relevant information can be found in WIZnet website. Note that below pins are used by PIO program to turn them into SPI. To distinguish…
