WIZsms LTE SMS Gateway on W55RP20 Ethernet

W55RP20 HTTPS gateway sends SMS through an LTE modem.

Benjamin

Published June 08, 2026 · © GNU General Public License, version 3 or later (GPL3+)

Original author: Nico Maas · GermanyOriginal source (new tab)

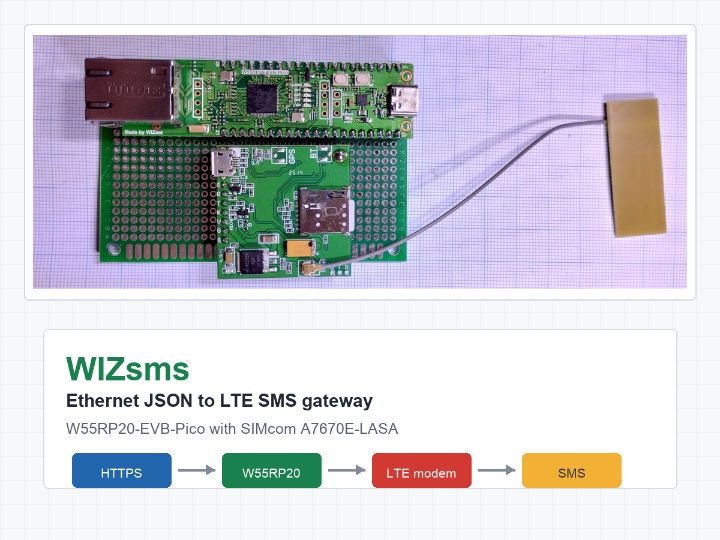

WIZsms LTE SMS Gateway on W55RP20 Ethernet

Components

Hardware components Software Apps and online services

Project description

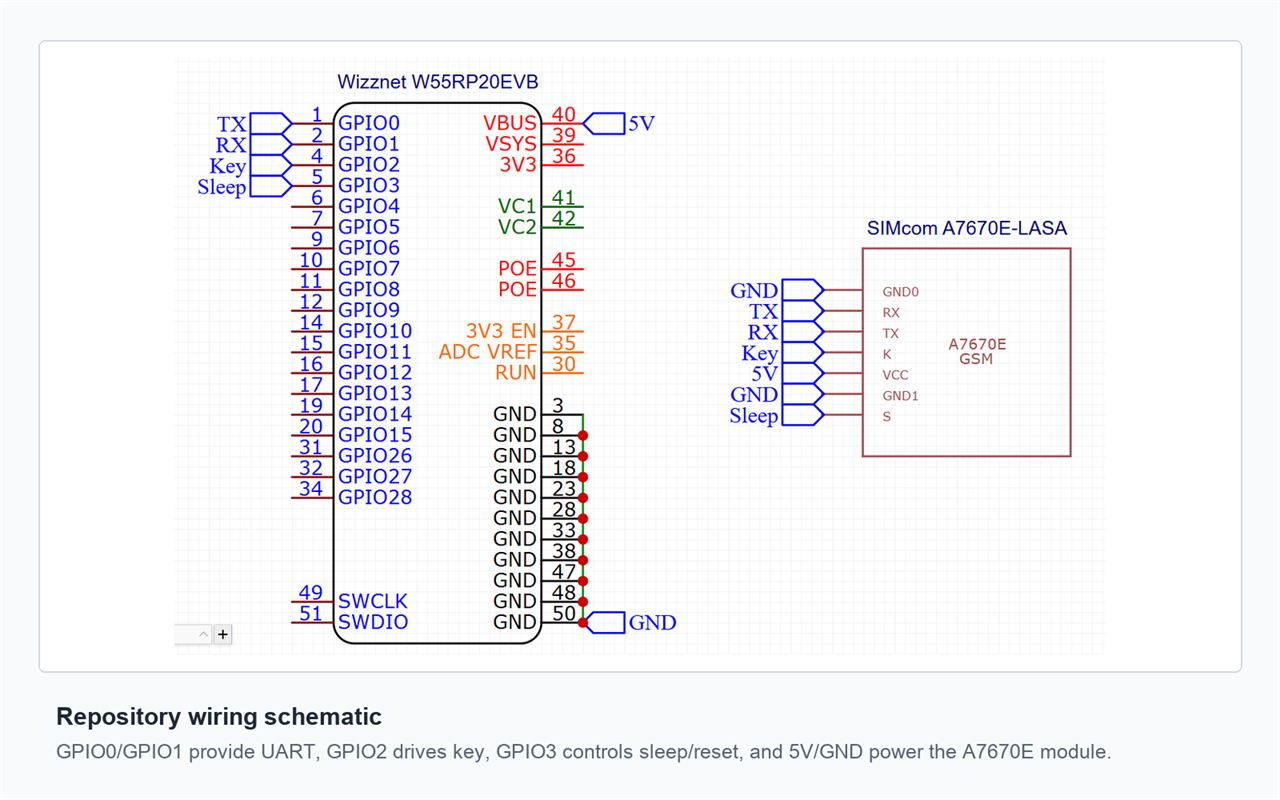

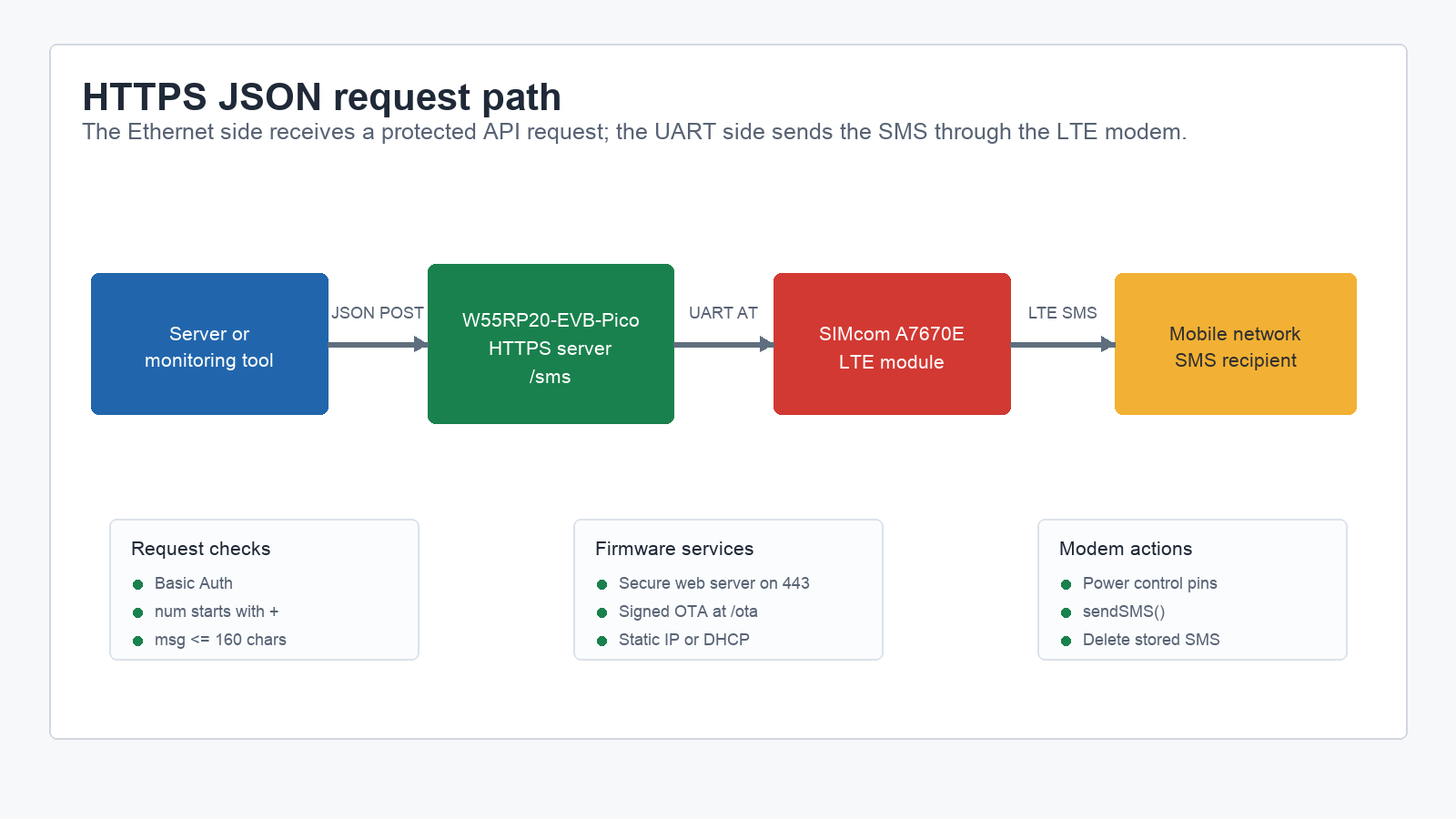

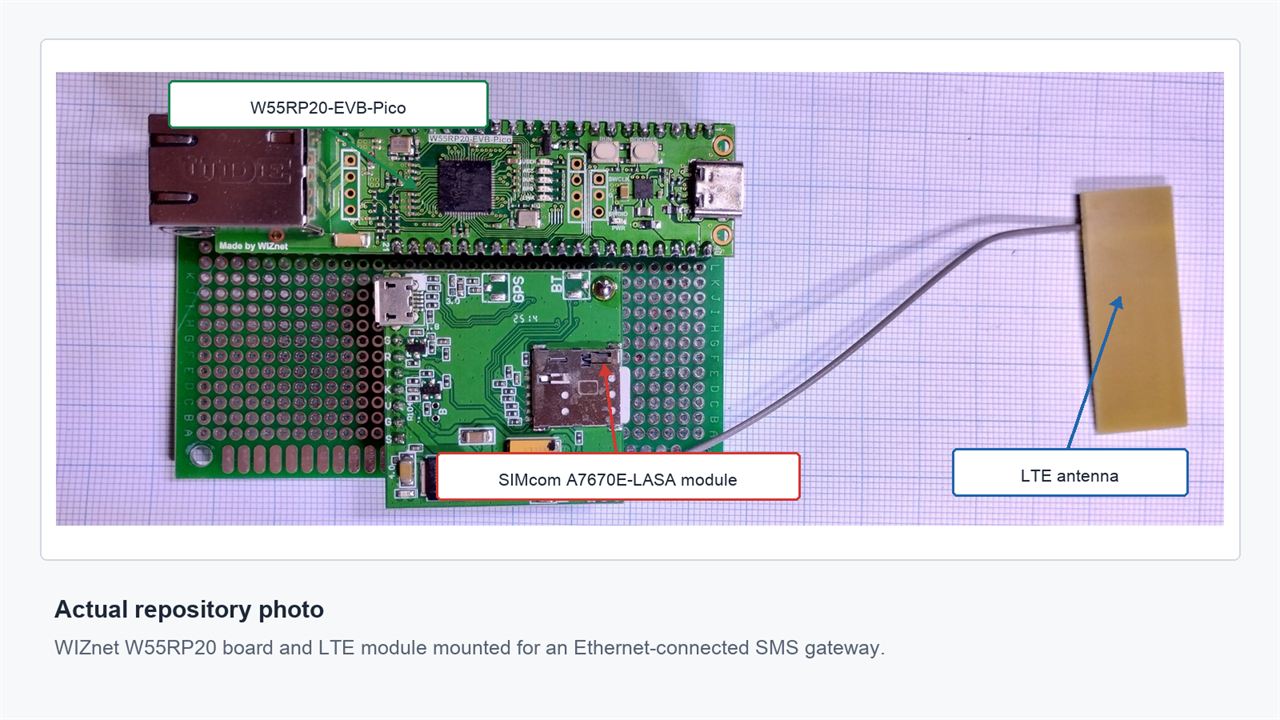

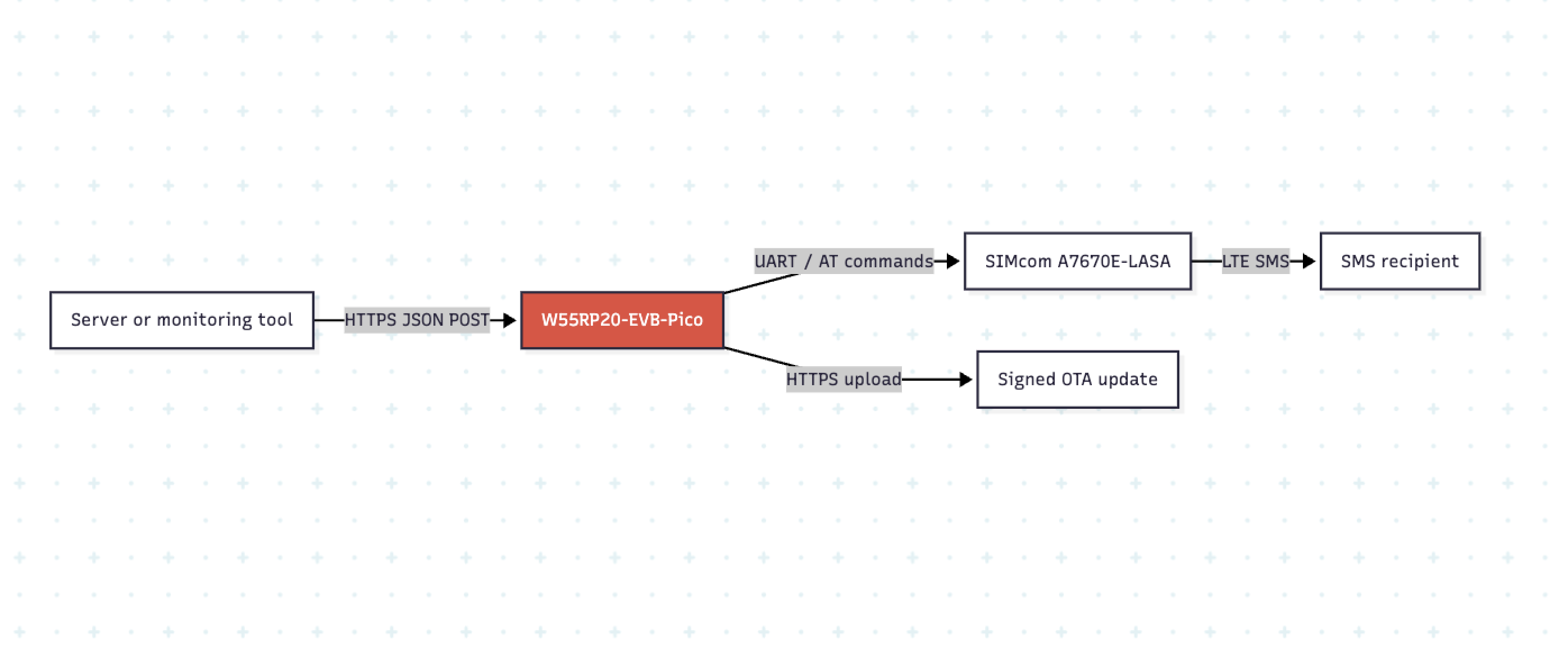

W55RP20 as a Secure SMS Entry Point WIZsms is an Ethernet-connected LTE SMS gateway built with the WIZnet W55RP20-EVB-Pico and a SIMcom A7670E-LASA LTE module. It exposes a protected HTTPS JSON endpoint on the wired network, accepts a destination number and message body, and sends the message through the LTE modem as an SMS. The project is useful because it gives servers, monitoring tools, and equipment controllers a simple network API for SMS alerts without making each host handle a USB modem, AT commands, or cellular setup. The repository frames the motivation around the transition away…
