SqueakyBoard

Project description

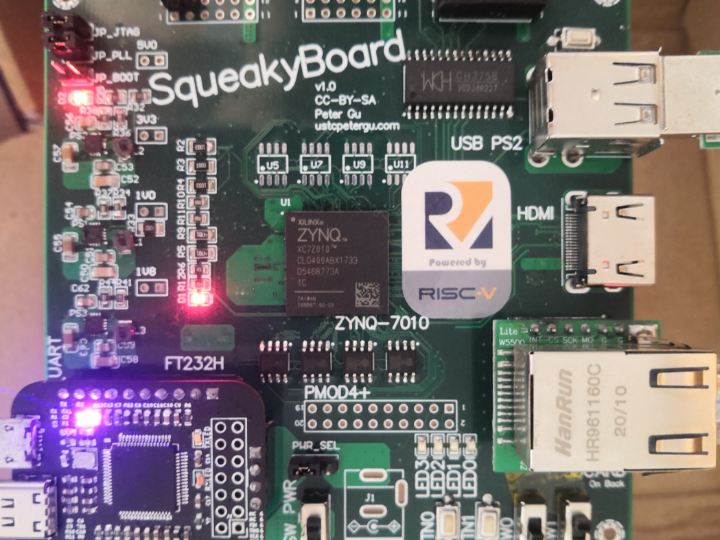

SqueakyBoard A self-designed ZYNQ 7010 FPGA development board Main Features 4-layer, 9.9 cm x 9.9 cm, meets JLCPCB requirements, friendly for hand-soldering, cost-optimized 28 K logic elements & Vivado and Xilinx SDK compatible, using the programmable logic of ZYNQ 7010 CLG400 Connectivity Pluggable CJMCU-FT232HL as JTAG downloader or USB-UART bridge Reserved standard 2x7 JTAG port SPI PSRAM up to 64 MBytes Basic HDMI USB-to-UART Two USB ports, one connected directly and one via CH375b Micro SD Card Pluggable W5500-Lite module Up to 4 PMOD connector 4 LEDs, 2 slide switches, 2 push buttons…
