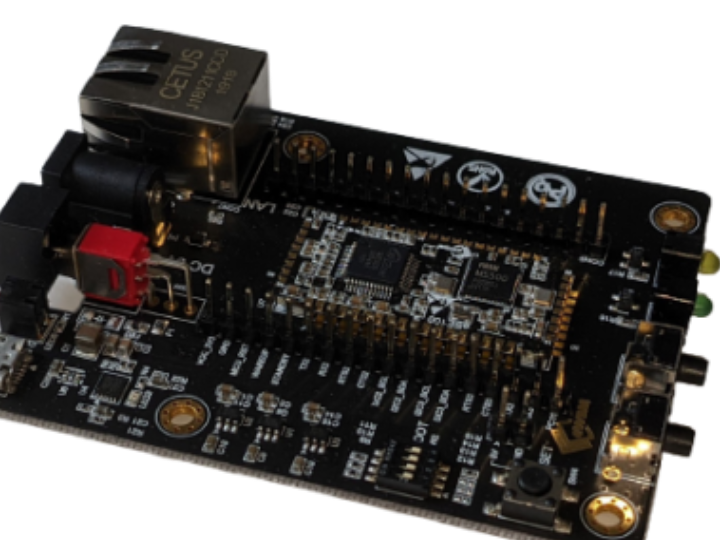

eSE100 - Secure Sensor-to-Ethernet Module, powered by MS500
The eSE100 (Secure Sensor-to-Ethernet module) provides a secured communication channel between sensors and any network servers. The module i
COMPONENTS
PROJECT DESCRIPTION
Security Features
Secure Key Management
- Device Unique Key
- Platform Key
- User Defined Key
- Session/App
Secure Boot – firmware Integrity checking
Secure Storage
PKI (Public Key Infrastructure) support
SSL/TLS socket connections
TLS 1.2 client and server mode
Hardware crypto engines
Symmetric Crypto engines
- AES 128/192/256 bits
- ARIA 128/192/256 for government requirement
Asymmetric Crypto engines
- ECC up to 512 bit
- RSA up to 2048 bit
Hash Accelerator – SHA1/SHA256 (50MB/sec)
TRNG –True Random Number Generator (25 Mbps)
HMAC (Hash-based MAC)
Authentication Algorithms
- AES GCM/GMAC
- AES CCM/CBC-MAC
AES Encryption Mode: ECB, CBC, CTR
Module performance
- RAM usage : 5KB at peak
- Flash memory usage : 100KB for TLS
- TLS setup time : 523ms (Client hello to handshake)
- Act as server or client to any IP infrastructure
- Pre-programmed with Firmware and Certificates
- TLS is optimized for h/w accelerators in MS500
- Customizations of services and SDK are available
- Available for development including User Guide and related software tools
Industrials
- Smart metering
- Lighting controls
- Smart Factory automation
- Secure sensor and actuators
