STM32H723 W6100 BUS Loopback Program
STM32H723 W6100 BUS Loopback Program
1
Project description

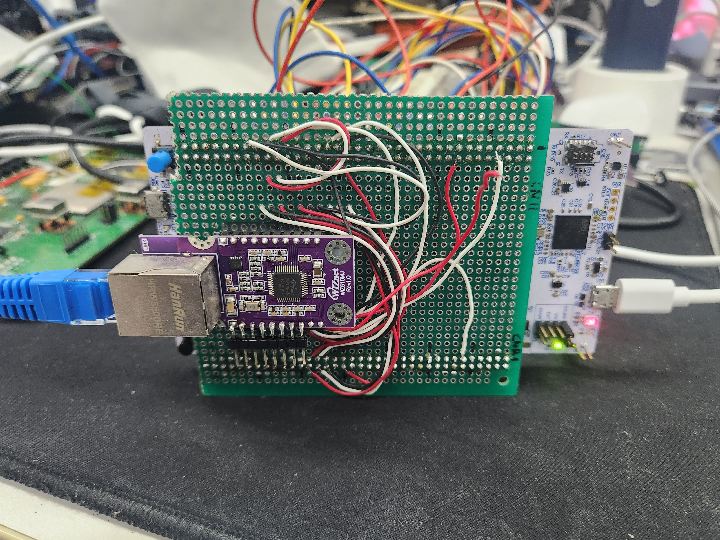

1. Hardware setting 1) Physical connection picture 2) Pin connection 2. software setting 1) FMC set Address and data pin settings are as follows. Write operation must be enabled to write data. It is possible to efficiently transmit and receive data by reducing the length of the signal by reducing the timing setting. 2) M7 Cache set Enable CPU DCache and set MPU Control as follows. Set Base Addr to 0x60000000, FMC addr, set size to 64KB, and change Access Permission as follows to make access possible. 3. code edit 1) Io6Library set Right-click on the project and you will see the menu below…
