1. Controllino

• Arduino, a favorite among makers, had limited industrial applications.
• Controllino emerged to fill this void, presenting itself as the first open-source industrial Programmable Logic Controller (PLC).
• It's available in three distinct versions: MINI, MAXI, and MEGA. Each version is equipped with features like built-in RTC, relay control outputs, and some even have RS485 and Ethernet capabilities.
• Controllino MAXI and MEGA built-in Ethernet chip WIZnet W5100.

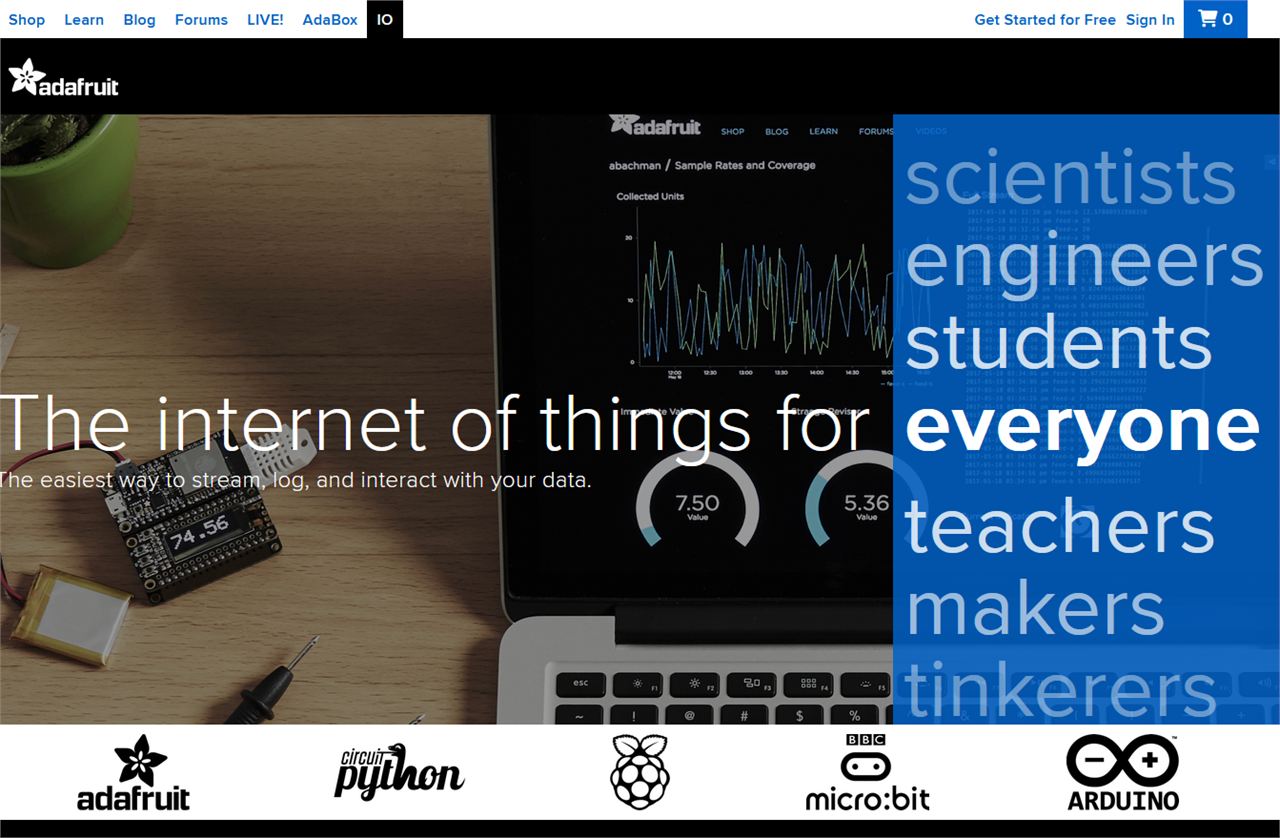

2. Adafruit IO

• Adafruit IO serves as an MQTT server in this tutorial.
• Users can create a free account on the Adafruit site, which allows them to log in to Adafruit IO.
• The tutorial guides users to set up streams and feeds, essential for MQTT communication.

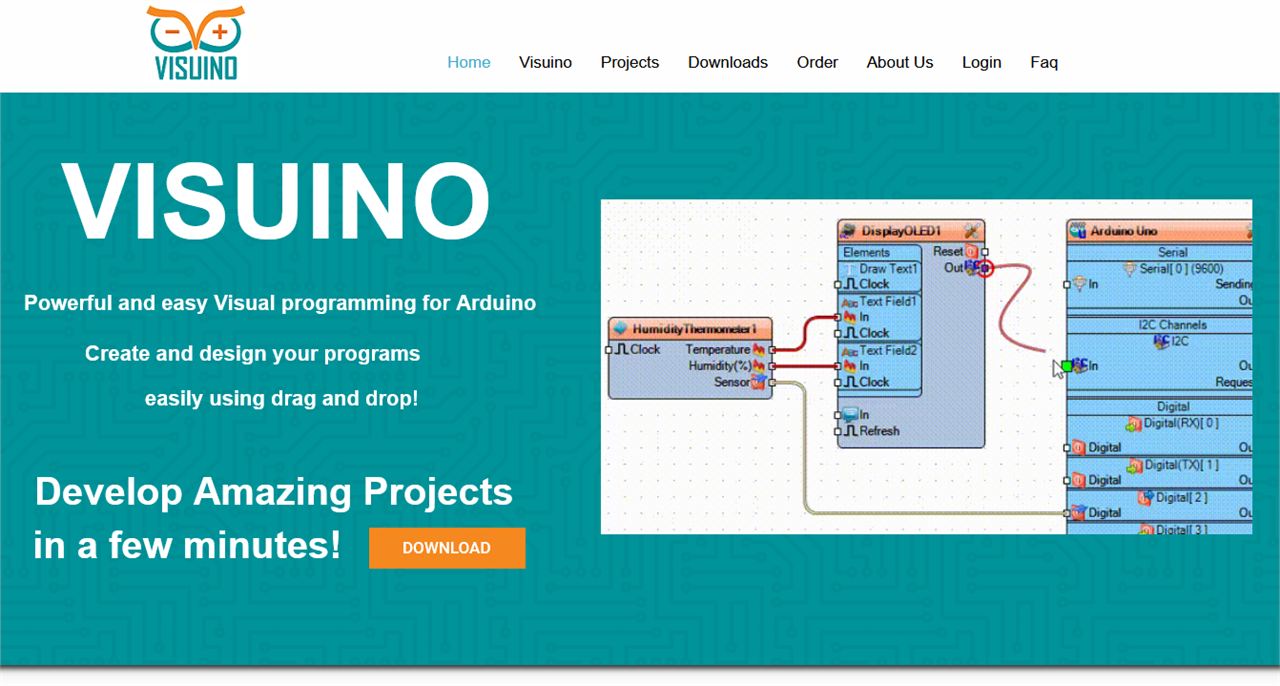

3. Visuino

• Visuino is a software platform that supports Controllino, making it easier for users to develop and deploy complex designs.
• It recently integrated MQTT support, which simplifies communication with IoT devices.
• The tutorial provides a step-by-step guide on how to program the Controllino using Visuino, emphasizing the importance of MQTT in the process.

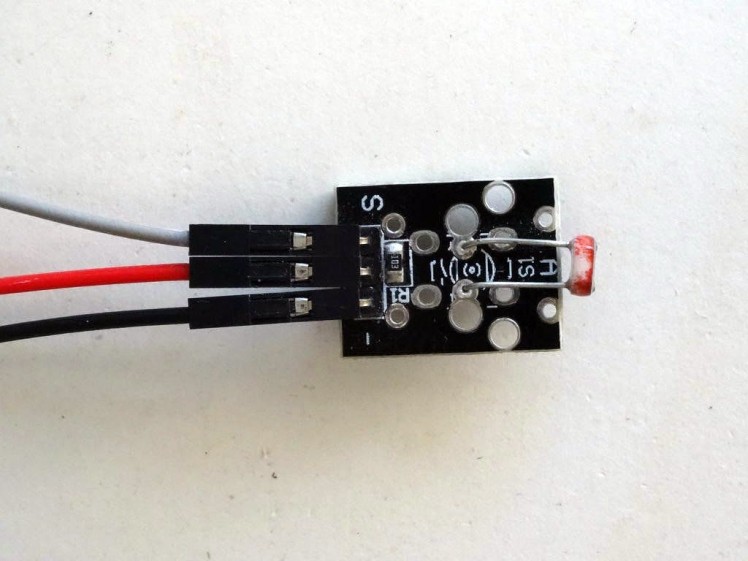

4. Photoresistor Sensor

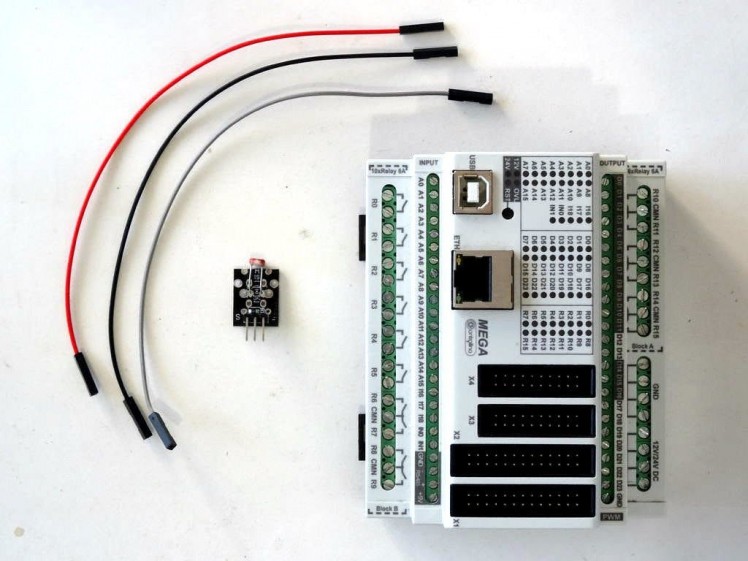

• The tutorial demonstrates how to connect a Photoresistor Sensor to the Controllino MEGA PLC.
• Detailed steps guide users on connecting the sensor, from wiring to pin connections.

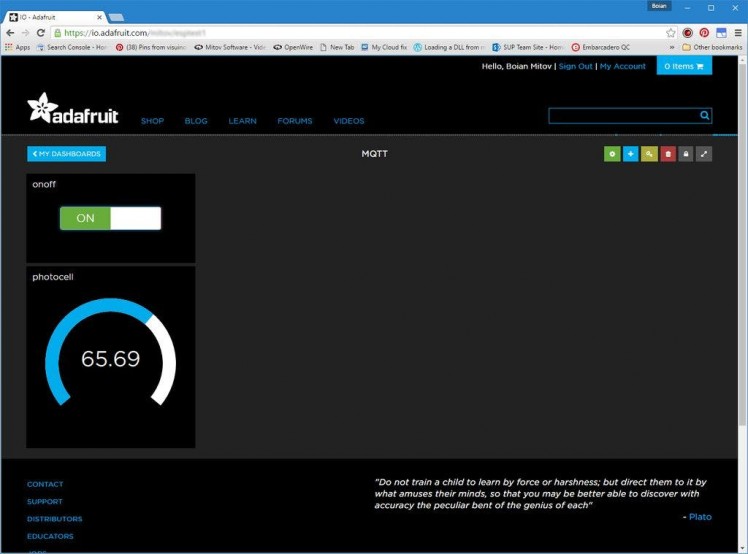

• Once set up, the sensor's data can be monitored and controlled in real-time through a web browser, allowing users to see the Controllino MEGA's LED being controlled and the Photoresistor's value displayed.

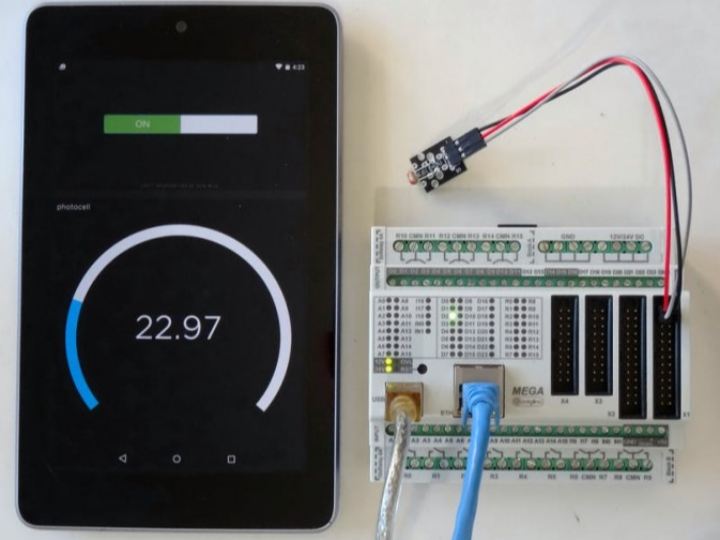

5. Result

6. Video

Thank you for reading.
