Micha - Serial to Ethernet Interface

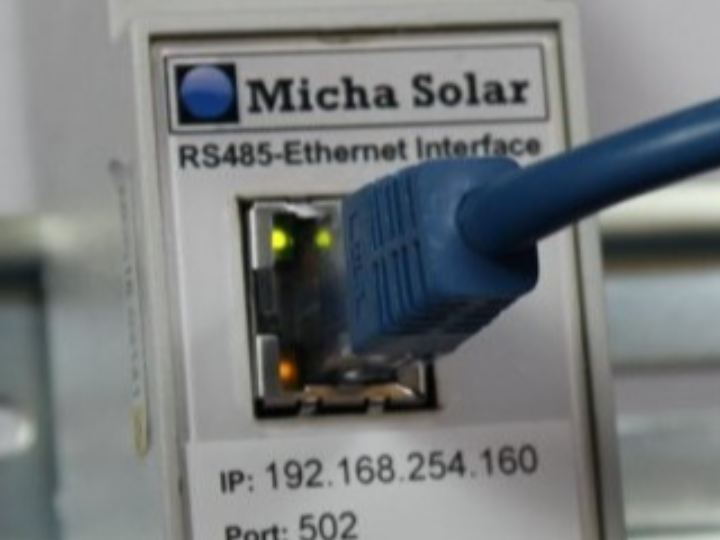

The Micha Serial to Ethernet Interface module allows the end user to directly communicate with the controller via a LAN connection.

ssekim

Published October 27, 2022 · © Apache License 2.0 (Apache-2.0)

Original author: Micha · United KingdomOriginal source (new tab)

Micha - Serial to Ethernet Interface

Components

Hardware components

Project description

The Micha series of Serial to Ethernet Interfaces provide a simple and reliable method of connecting an RS232 or RS485 port to a network. These gateway modules convert serial protocol (RS-232 or RS485) into TCP/IP protocol and enable remote management and control of a serial device through a TCP/IP network. Based on the WIZnet W7100 chip, the TCP/IP core is a market-proven hardwired TCP/IP stack with integrated Ethernet MAC & PHY and supports TCP, UDP and IPv4. Two supply voltage ranges are available – 10VDC to 30VDC, and 20VDC to 60VDC. The modules include isolating DC-DC converters…
